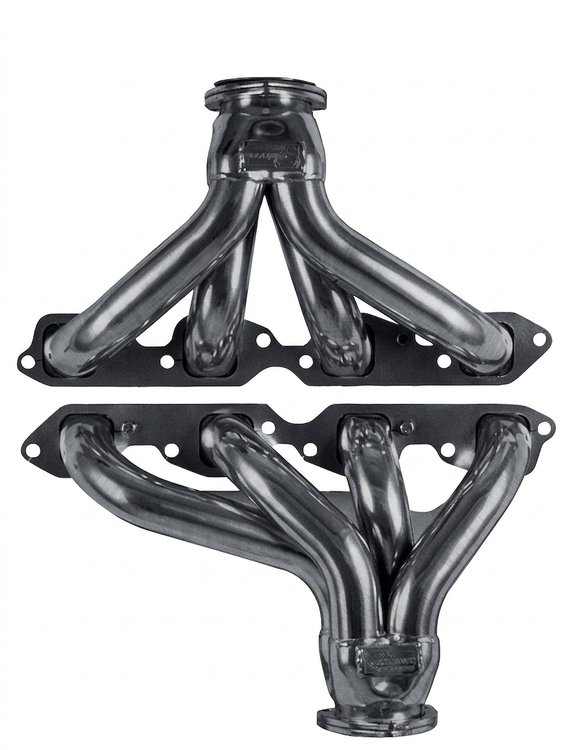

BB1-P Shorty Header Set, 1932-1948 Chevy Cars/Trucks, 1949-1963 Chevy Cars, 1948-Up Ford Trucks w/BBC [Raw/Unfinished]

Vehicle Info Needed

BB1-P Shorty Header Set, 1932-1948 Chevy Cars/Trucks, 1949-1963 Chevy Cars, 1948-Up Ford Trucks w/BBC [Raw/Unfinished]

Name: BB1-P Shorty Header Set, 1932-1948 Chevy Cars/Trucks, 1949-1963 Chevy Cars, 1948-Up Ford Trucks w/BBC [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-BB1-P
Price: 509.11 USD
Availability: InStock

^$509¹¹

Ships on 10/09/2026

Lowest Price Guarantee

1932-1948 Chevy Cars/Trucks, 1949-1963 Chevy Cars, 1948-Up Ford Trucks w/Big Block Chevy

Shorty Header Set

1932-1948 Chevy Cars/Trucks, 1949-1963 Chevy Cars, 1948-Up Ford Trucks w/Big Block Chevy

Raw/Unfinished

Pair

Sanderson Headers BB1-P Features:

The Sanderson BB1 header fits big block Chevy engines in cars, trucks, and street rods where tight fit and performance are a factor. Virtually eliminating ground clearance problems, the BB1 hangs down less than 11 in. from the center of the exhaust ports on the cylinder heads. The BB1 header is 2 in. tighter to the block than any other block hugger header! The BB1 will fit most chassis without a cross member beneath the center of the engine block. Available for Mark V applications with RH-side dipstick, order part #BB1MV. Comes with all hardware necessary for installation.

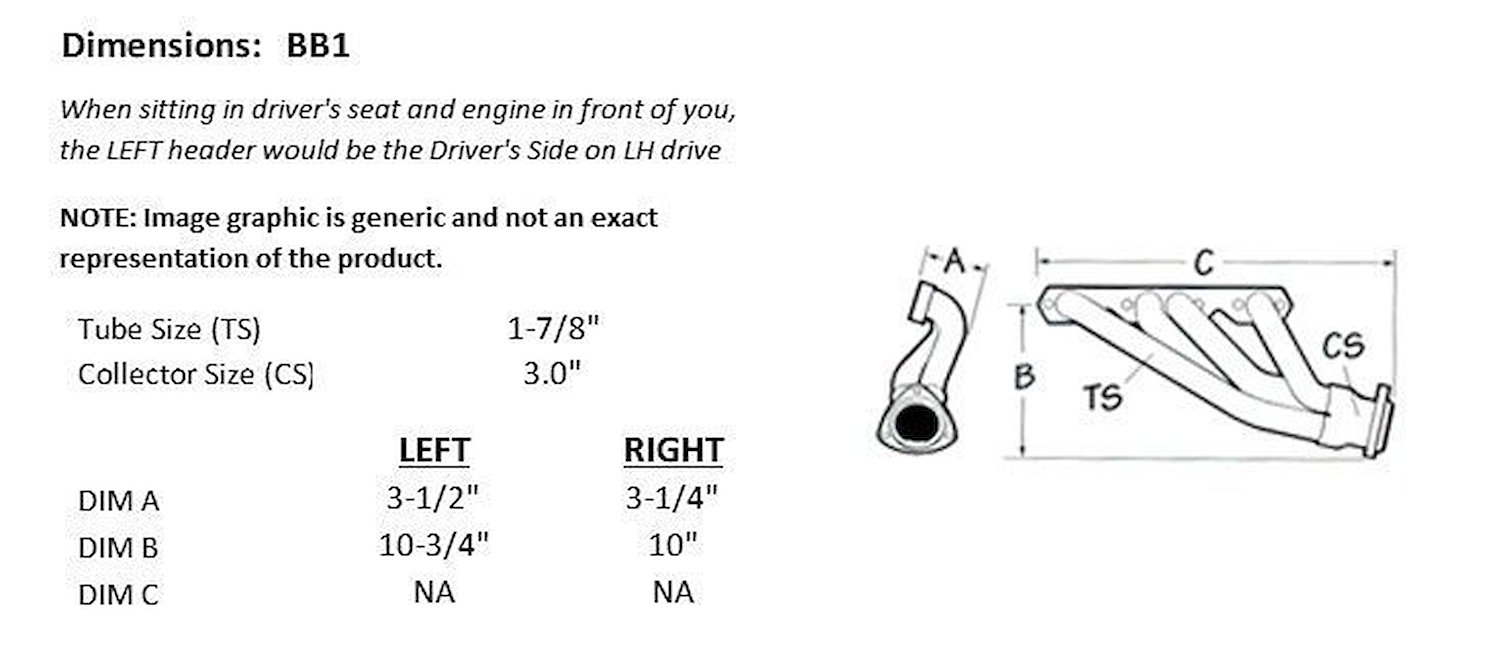

SPECIFICATIONS:

Engine: Big Block Chevy 395-454, 502
Primary Tube Diameter: 1-7/8 in.
Collector Diameter: 3 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height8.3

Package Width12.3

Package Length20.4

Weight19.6 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberBB1-P

Package Qty1

Package TypeEA
