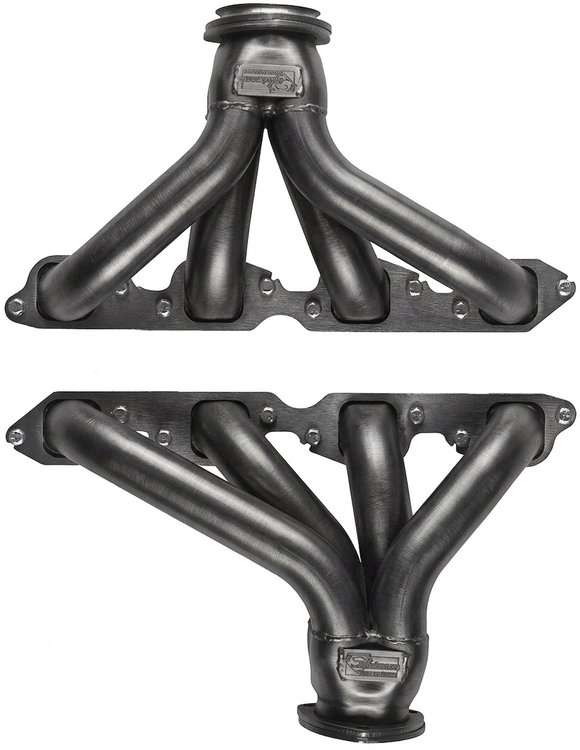

Shorty Header Set

1955-1983 Chevy Corvette w/Big Block Chevy

Raw/Unfinished

Pair

Sanderson Headers BB5-P Features:

The Sanderson BB5 header set fits big block Chevy engines in Chevy Corvette applications. This header fits all classic year (1955-83) Corvettes, although some years may require shortening of the upper shock mount bolts. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Big Block Chevy 395-454, 502
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
