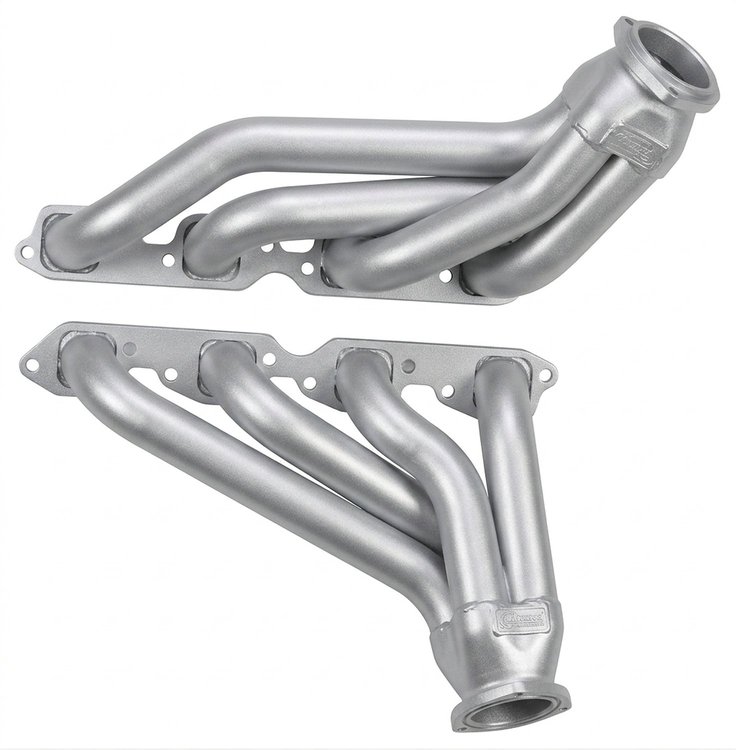

Shorty Header Set

1968-1987 GM Truck w/Big Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers BB8-SEC Features:

The BB8 header set fits big block Chevy engines in 1967-1987 Chevy and GMC pickups and 1967-1991 Suburban. The BB8 clears all stock steering and chassis components. If you are changing the location of the motor in the chassis, be sure to check the dimensions provided to ensure the BB8 header will fit the application. LMC #34-0304 frame mounts recommended

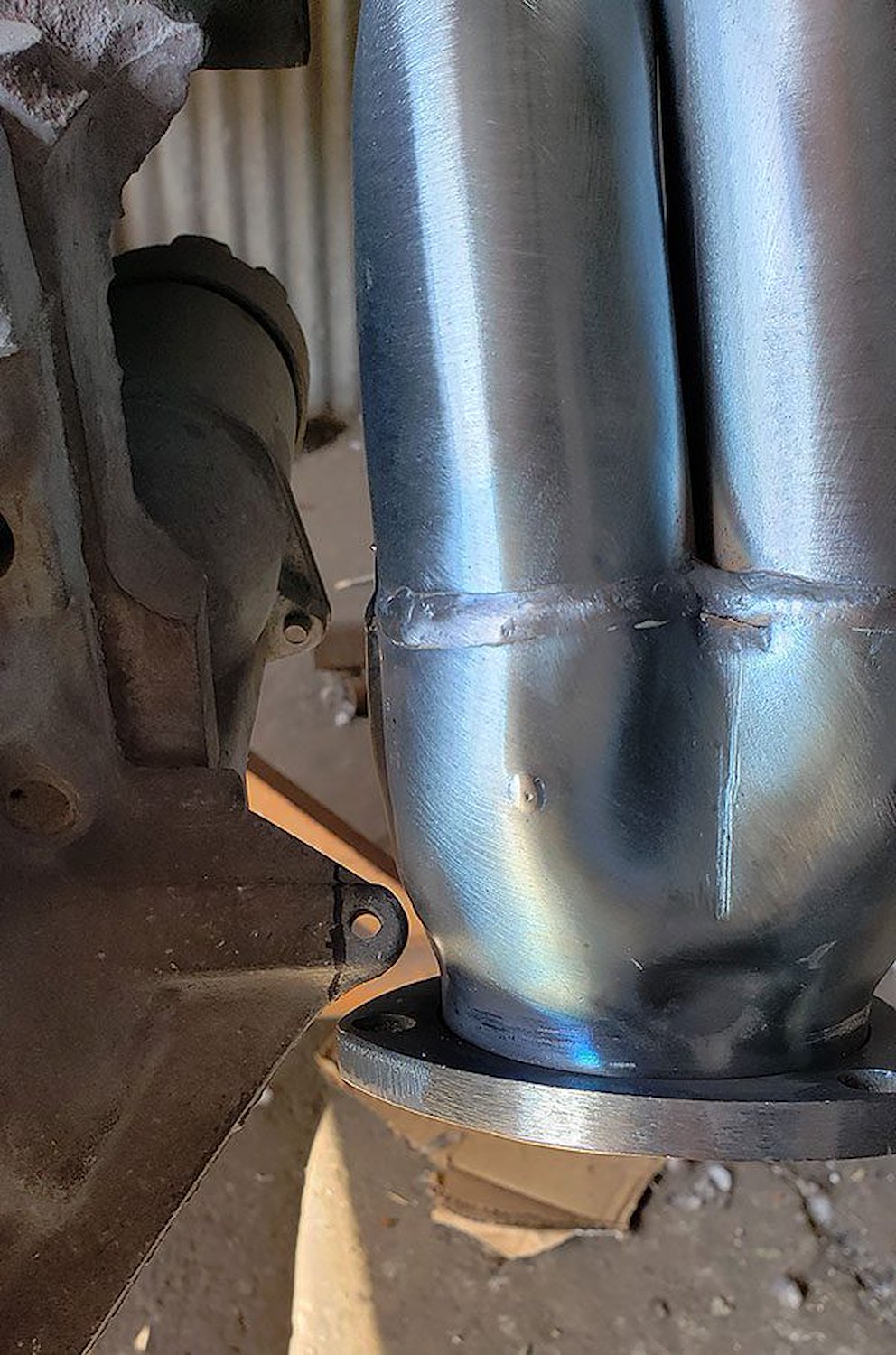

NOTE: Applications using the GM TH400 transmission require a dimple in the passenger-side header collector or trimming of the bolt boss for converter cover mounting. Please specify the transmission when ordering. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Big Block Chevy 395-454, 502
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
