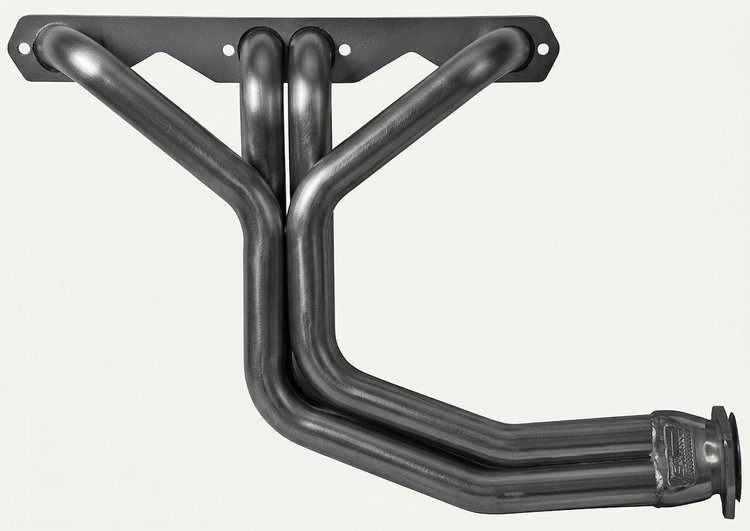

C3-P Full-Length Header Set, Small Block Chevy [Raw/Unfinished]

Vehicle Info Needed

C3-P Full-Length Header Set, Small Block Chevy [Raw/Unfinished]

Name: C3-P Full-Length Header Set, Small Block Chevy [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-C3-P
Price: 522.33 USD
Availability: InStock

^$522³³

1 left in stock

Ships Today

Lowest Price Guarantee

Small Block Chevy

Full-Length Header Set

Small Block Chevy

Raw/Unfinished

Pair

Sanderson Headers C3-P Features:

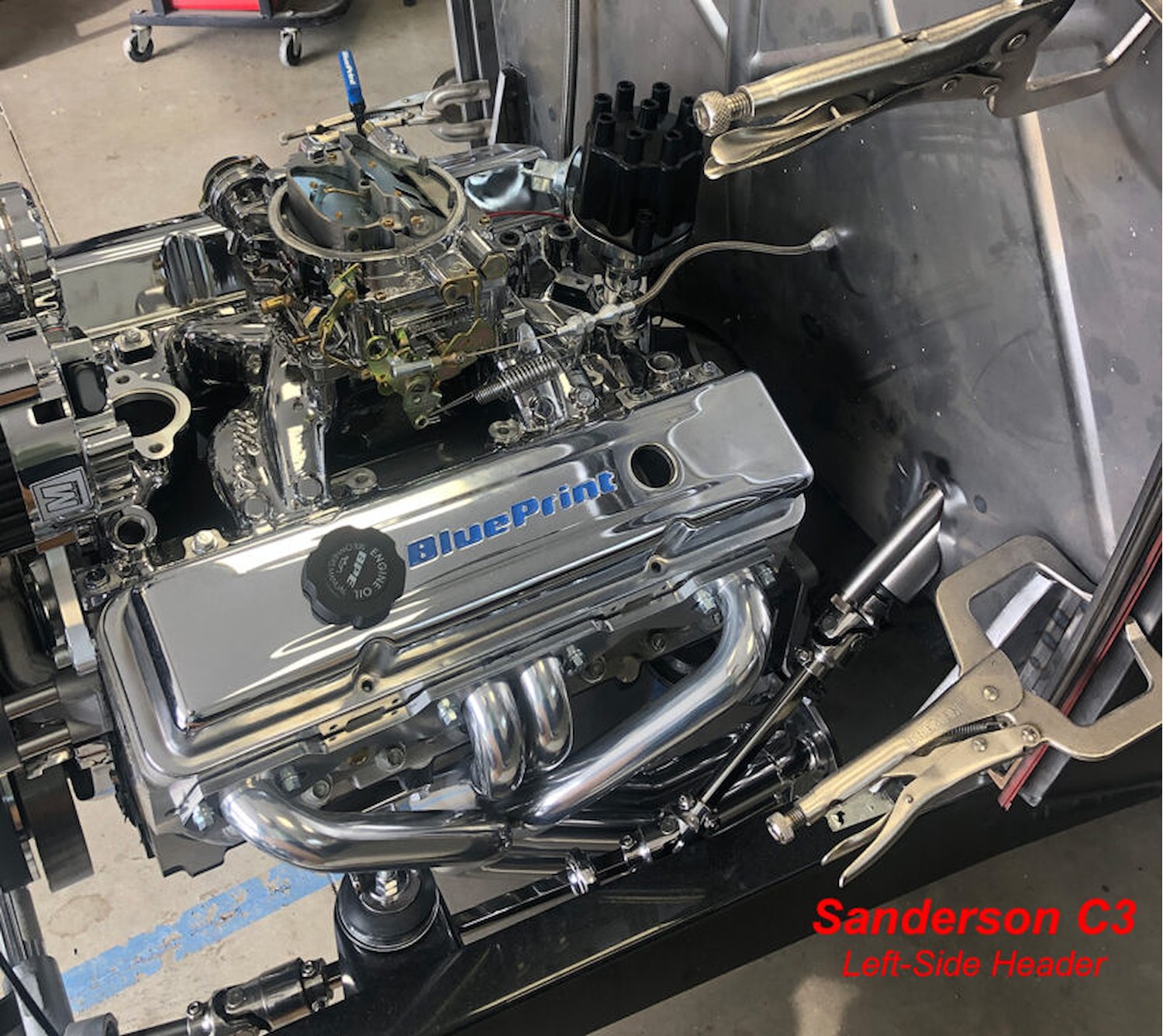

The C3 full-length header set fits a variety of street rod applications. It fits tighter to the engine block than stock manifolds while still exiting 1/2 in. higher than the bottom of a stock oil pan, providing exceptional ground clearance. There is ample spark plug clearance, and the C3 works with original equipment and stock-style steering gearboxes, Vega, and most rack-and-pinion setups. It will clear most starters and transmissions except the cast iron Powerglide. Straight plug heads ONLY. For applications using angle plug cylinder heads, use part number C32AP. Pre-’68 engines must use a spin-off oil filter adapter and filter 1968 and newer engines should use the AC PF12, PF25, or compatible short style oil filter for maximum clearance Available in a 1-5/8 in. primary tube version. Order part number C32 Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2 in.
Collector Diameter: 2.5 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height7.3

Package Width21.2

Package Length33.9

Weight30.88 PG

Part CategoryPerformance Parts

Collector Reducers IncludedNo

Header FinishNatural

QuantitySold as a Pair

Flange Thickness0.38 in.
