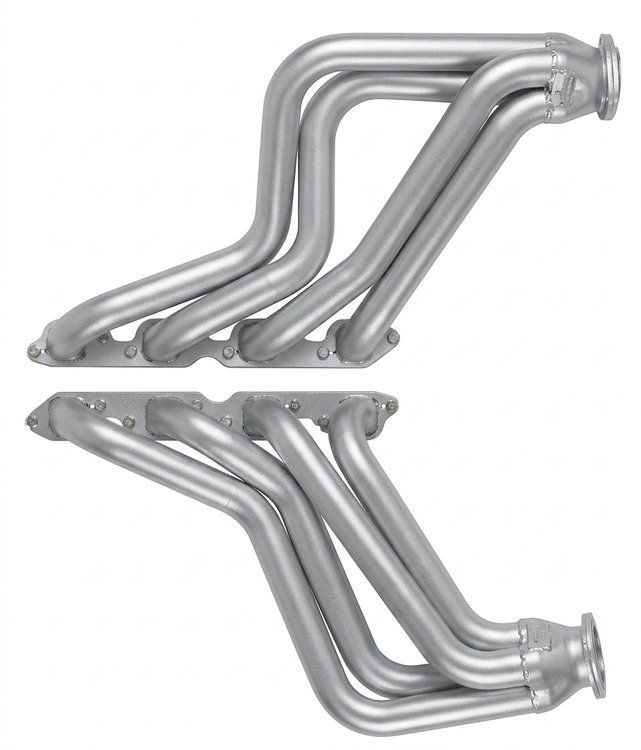

Full-Length Header Set

Big Block Chevy 396-502ci Engine Swaps, 1969-1972 Chevy Blazer 4WD, 1970-1972 GMC Jimmy

TH400 Transmission

Silver Ceramic Coating

Pair

Sanderson Headers C8-SEC Features:

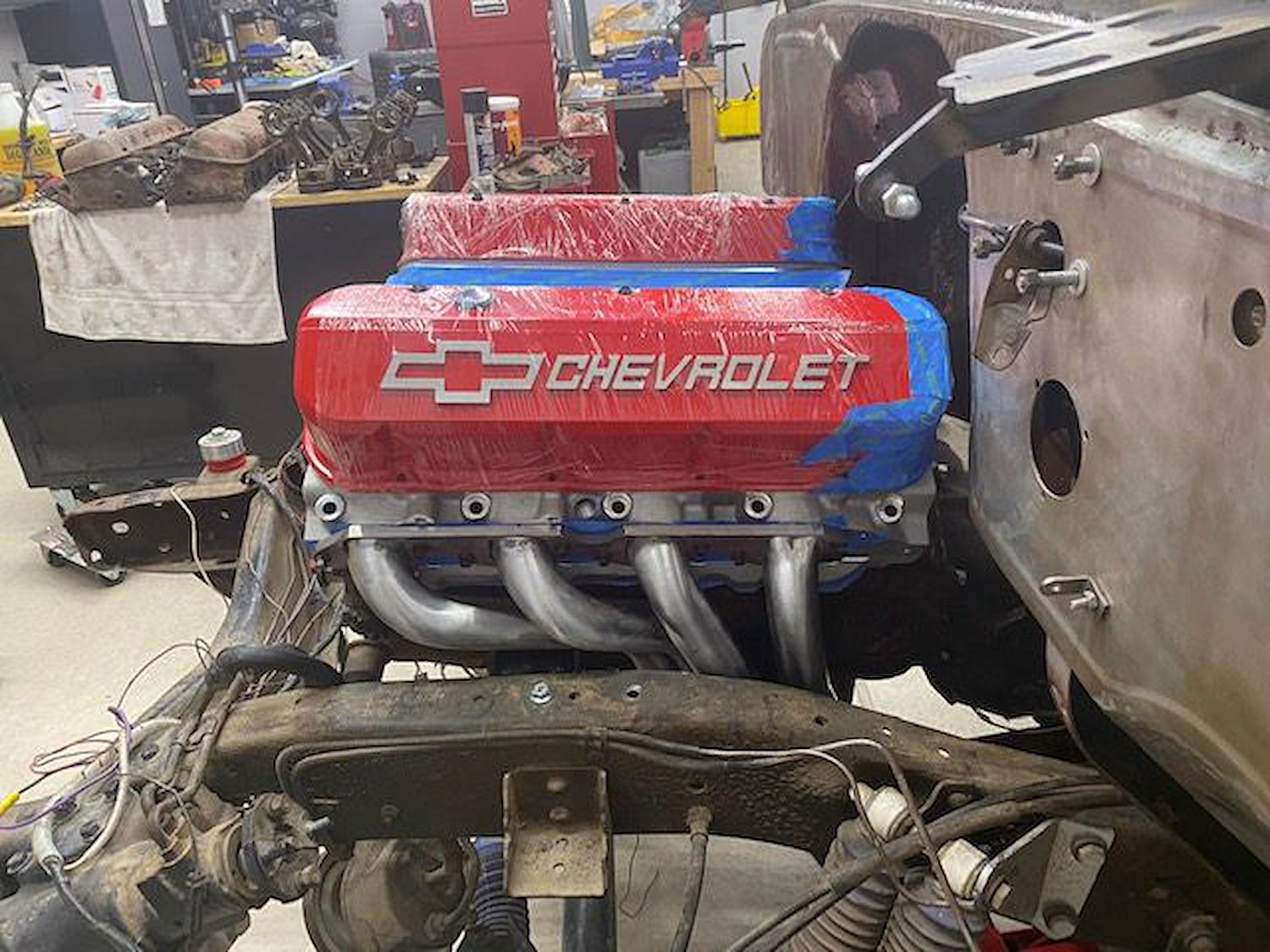

The C8 is a large tube full-length header set for 396-502 big block Chevy engine swaps in 1969-72 4WD Chevy Blazer and 1970-72 GMC Jimmy with a TH400 transmission. The TH400 transmission swap moves the engine forward approximately 3.0 in.. This creates problems in finding a header set that fits the application. Sanderson offers a solution with the C8 header set. For more information on the swap, please read this blog post.

Notes: Please let us know if using raised port cylinder heads and how much. Some raised port applications require tube dimpling for spark plug clearance Raised port heads will probably require the use of shorter “header in. spark plugs Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Big Block Chevy 395-454, 502
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
