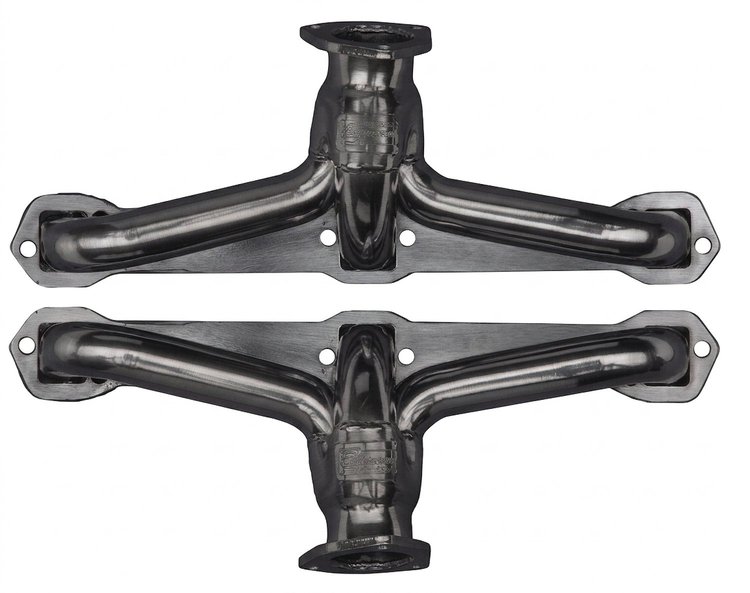

CAD392-P Shorty Header Set, Cadillac 390-429ci [Raw/Unfinished]

Name: CAD392-P Shorty Header Set, Cadillac 390-429ci [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CAD392-P
Price: 548.78 USD
Availability: InStock

^$548⁷⁸

Ships Tomorrow

Lowest Price Guarantee

Cadillac 390-429ci

Shorty Header Set

Cadillac 390-429ci

Raw/Unfinished

Pair

Sanderson Headers CAD392-P Features:

The CAD392 header set fits Cadillac 390 and 429 engines in street rod and custom applications that do not have a crossmember directly under the engine. Featuring a 3-tube design, the outer primary tubes are 1-5/8 in. diameter, while the center (or inner) tube is 1-7/8 in. diameter, and then exits through a 2½ in. collector. Please compare the dimensions of this header set with those of the CAD391 (specifically the driver-side header) to confirm which is the best choice for the application. The CAD391 is best for original, factory chassis applications, and the CAD392 is best suited for applications using aftermarket chassis and steering.

NOTE: Does not include header bolts. Please source appropriate fasteners elsewhere.

SPECIFICATIONS:

Engine: Cadillac 390/429 V8
Primary Tube Diameter: 1-5/8 in. outer, 1-7/8 in. inner
Collector Diameter: 2½ in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height7.0

Package Width21.0

Package Length24.0

Weight21.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCAD392-P

Package Qty1

Package TypeEA
