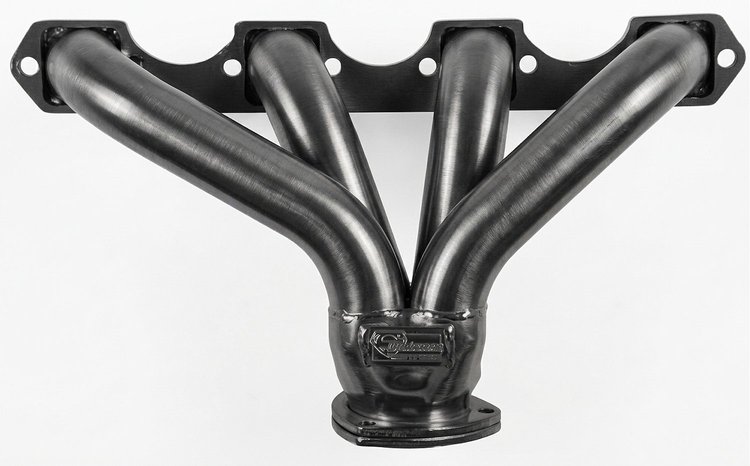

Shorty Header Set

Cadillac 425-500ci

Raw/Unfinished

Pair

Sanderson Headers CAD500-P Features:

The CAD500 header set fits Cadillac 425, 472, and 500 engines in street rod and custom applications that do not have a crossmember directly under the engine. More builders are using Cadillac engines in various street rod applications, and Sanderson is pleased to offer the first affordable aftermarket block hugger header for these engines. If cubic inches are the only way to go in your street rod, then a big Cadillac V8 and Sanderson’s CAD500 headers are for you!

SPECIFICATIONS:

• Engine: Cadillac 425, 472, and 500 V8
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
