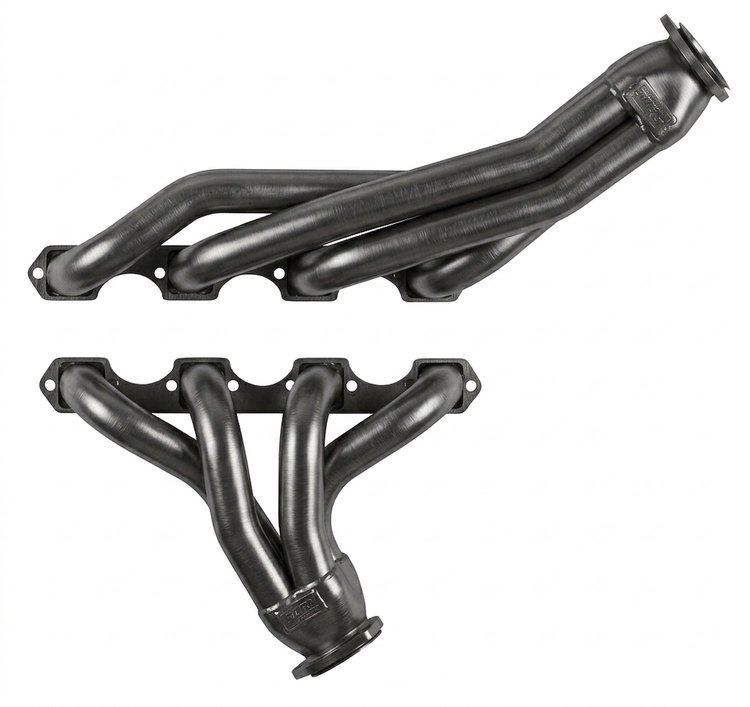

Shorty Header Set

Cadillac 425-500 GM A-Body

Raw/Unfinished

Pair

Sanderson Headers CAD600-P Features:

The CAD600 header set fits Cadillac 425, 472, and 500 engines swapped into Chevy A-Body (Chevelle, Malibu, El Camino) vehicle applications, including street rods using a GM A-body front suspension graft. The CAD600 also fits 1955-up Chevy pickup trucks fitted with the Cadillac engine. The CAD600 offers an excellent fit, clearing all engine and chassis

SPECIFICATIONS:

• Engine: Cadillac 425, 472, and 500 V8
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
