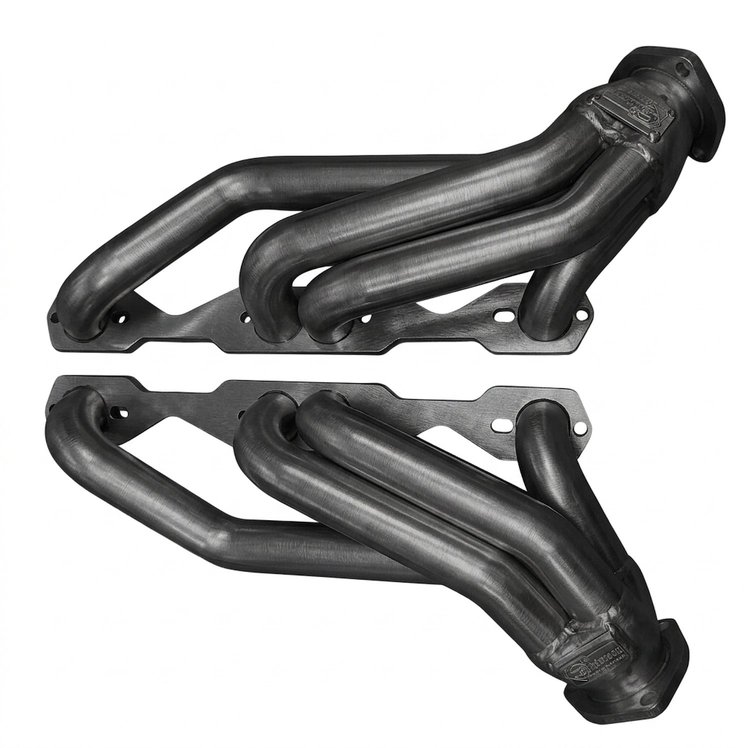

Shorty Header Set

1960-1966 & 1987-1999 Chevy/GMC Truck w/Small Block Chevy BluePrint Engine

Straight Plug

Raw/Unfinished

Pair

Sanderson Headers CC11-158-P Features:

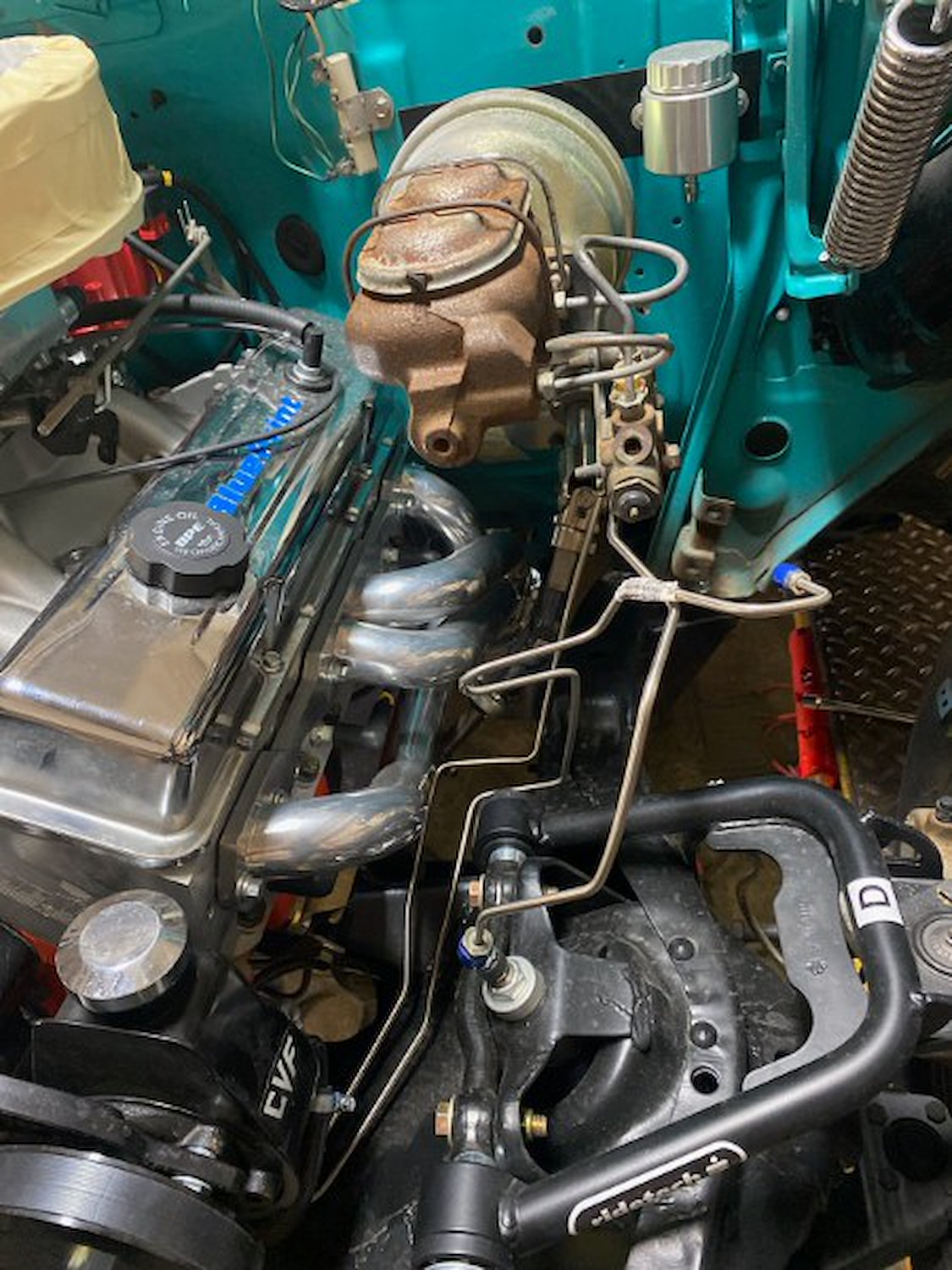

The CC11-158 is a swept-back, short header that fits Chevy and GMC pickups from 1960-1966 and 1987-1999 with a BluePrint engine, and also provides clearance for Flaming River rack-and-pinion setups in 1955-57 Chevy cars with a BluePrint engine. The CC11-158 fits straight plug cylinder heads ONLY!

NOTE: Only compatible on vehicles with an automatic transmission or manual if converted to a hydraulic clutch setup. Will not clear factory Z-bar applications. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2.5 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
