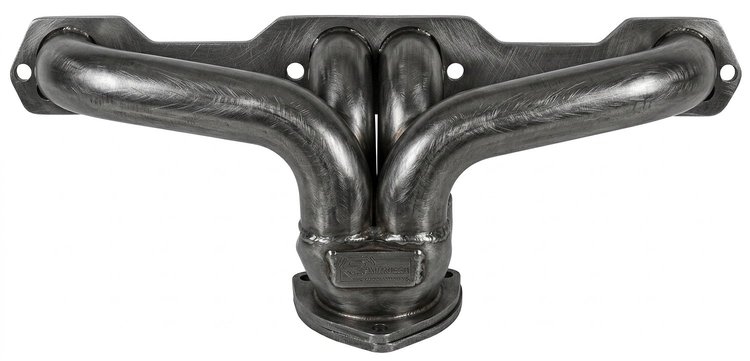

Shorty Header Set

Small Block Chevy

Raw/Unfinished

Pair

Sanderson Headers CC134-P Features:

The CC134 header set is a large tube design for 1927 and up automobiles and trucks using small block Chevy engines. It fits aftermarket Mustang II, Vega, and rack-and-pinion front suspension kits, including Heidts, TCI, and Chassisworks chassis, and clears most motor mount styles, tie rods, and steering rods. The CC134 is one of Sanderson most popular small block Chevy headers. Its features include a 1-3/4 in.

Primary Tube Diameter and a 3.0 in. collector for all but the most radical performance engines. Compatible with straight or angle plug cylinder heads, it is the most compact true-performance header offered today. Available for D-port cylinder heads (GM Fastburn, ZZ4, ZZ6, etc.) Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-3/4 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
