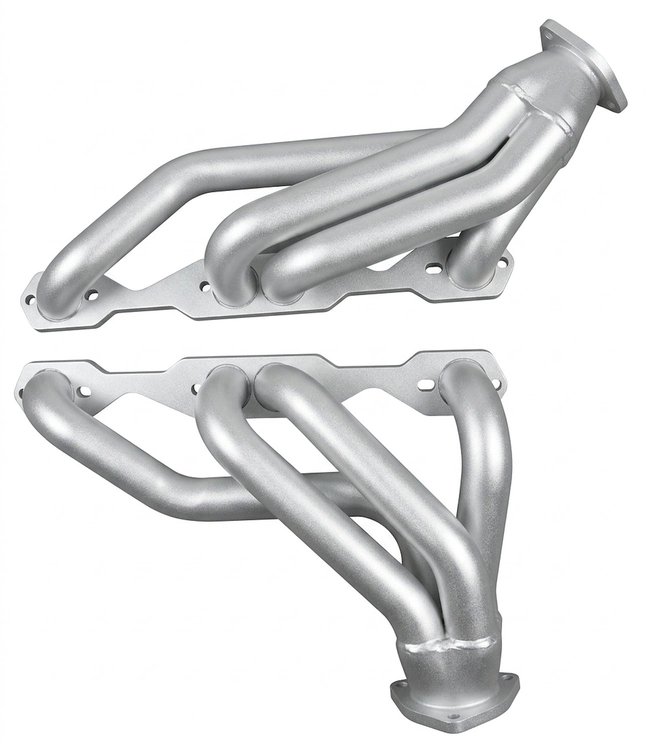

Shorty Header Set

1968-1972 Chevy Chevelle/El Camino, 1970-1981 Chevy Camaro, 1967-1987 Chevy/GMC Truck w/Small Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers CC17-SEC Features:

The CC17 header set fits 1968-72 Chevelle and El Camino, 1970-81 Camaro, and 1967-87 Chevy and GMC Truck applications using the small block Chevy engine. APPLICATION

Notes: Fits straight plug cylinder heads only. For angle plug cylinder head applications, use part #CC17AP Compatible with manual transmission applications using the rear, over-the-oil-filter, or in the bellhousing Z-bar pivot location. For manual transmission 1964-67 Chevelle and El Camino applications, use part #CC12 or C12 Fits some GM G-body (1978-87) applications Please specify whether the vehicle has factory air conditioning (AC) Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2-1/2 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
