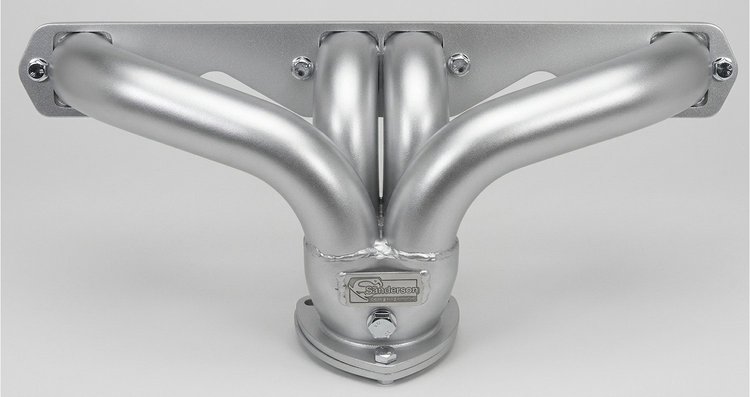

Shorty Header Set

Small Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers CC178-SEC Features:

The CC178 is a large tube header for 1927 and up automobiles and trucks using small block Chevy engines. It fits aftermarket Mustang II, Vega, and rack-and-pinion front suspension kits, including Heidts, TCI, and Chassisworks chassis. The CC178 header features a large 1-7/8 in.

Primary Tube Diameter and a 3 in. collector for extreme horsepower, high RPM, supercharged, and other high-performance engines that require a larger primary tube to exit the exhaust gases. The header clears most motor mount styles, tie rods, and steering rods. It is the most compact 1-7/8 in. header offered today. The header comes with all necessary hardware for installation.

NOTE: The CC178 uses a rectangular-shaped port to fit most performance cylinder heads without adapter plates, with dimensions of roughly 1-3/8 in. width by 1-3/4 in. height (see images). Ensure the cylinder heads have adequate material around the exhaust ports for proper sealing. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
