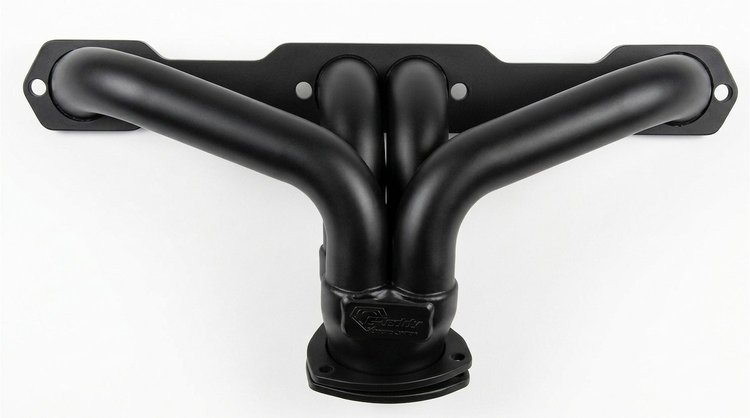

Shorty Header Set

Small Block Chevy

Angle Plug

Black Satin Ceramic Coating

Pair

Sanderson Headers CC1AP-BEC Features:

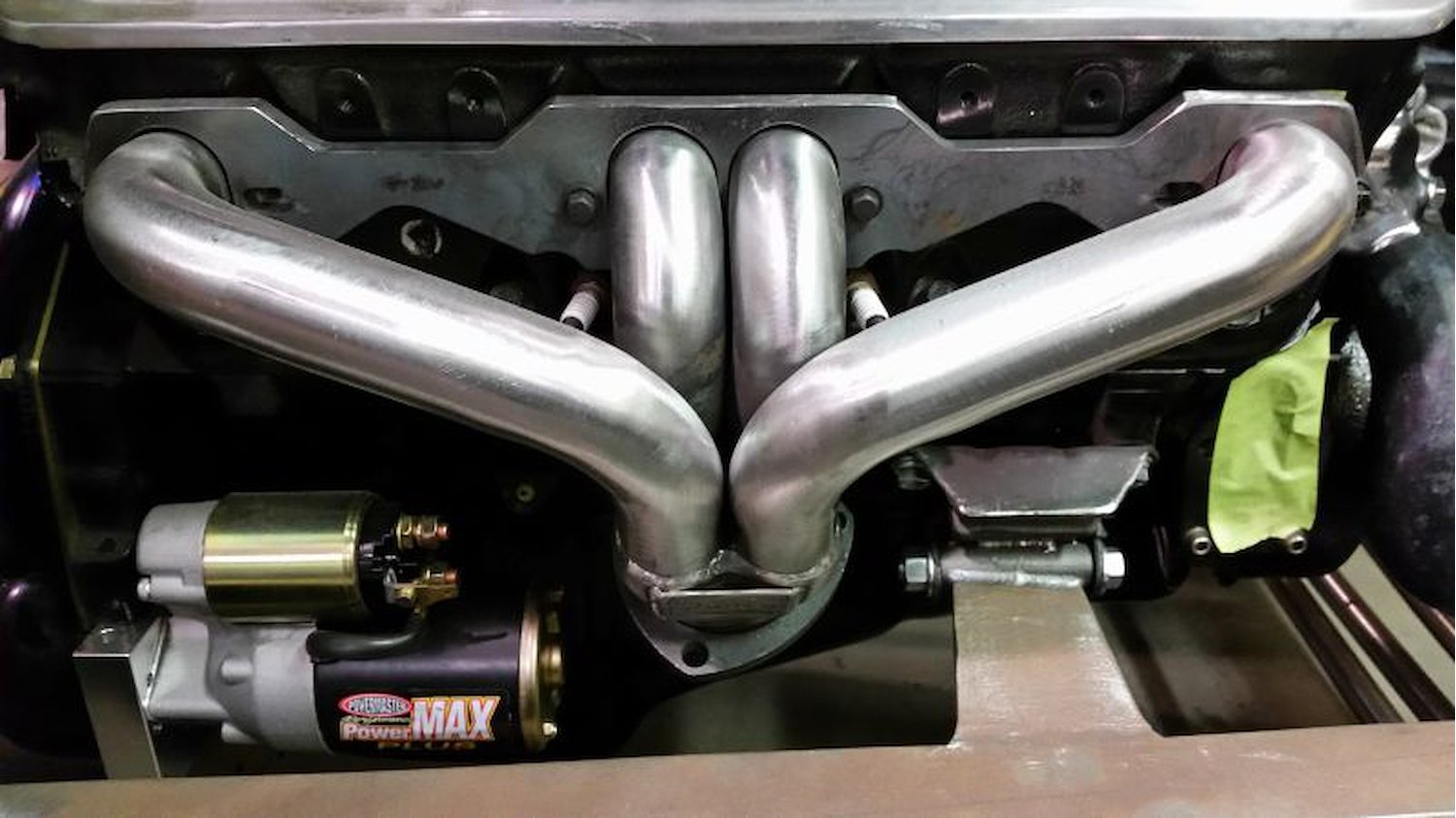

The CC1AP header fits various 1927 and up automobiles using a small block Chevy engine with angle plug cylinder heads. The CC1AP header fits any rack and pinion set-up. Also fits Vega steering and any Mustang-style mounted steering that is mounted with 2 in. clearance from the steering gear to the center ports on the driver’s side. (Routing the steering shaft around the header is still required, depending on the chassis and steering type.) The CC1AP clears any motor mount configuration, tie rods, and steering rods. It is compatible with any starter and transmission combination. Comes with all hardware necessary for installation.

NOTE: For true D-port cylinder heads (GM Fastburn, ZZ4, ZZ6, etc.) use part #CC1DP.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400 V8
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2.5 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
