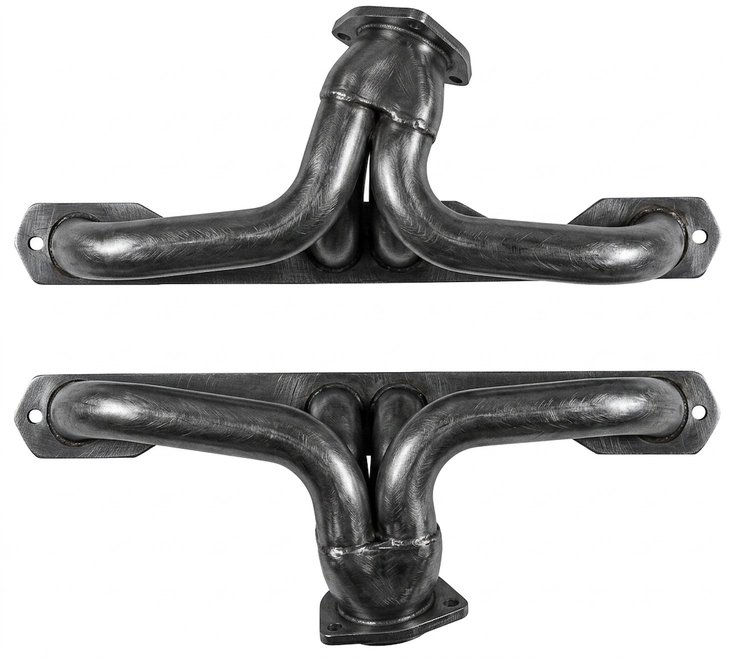

CC3DP-P Shorty Header Set, 1970-1992 Chevy Camaro, 1955-Up Chevy Trucks w/SBC, Angle Plug, D-Port Flange [Raw/Unfinished]

Name: CC3DP-P Shorty Header Set, 1970-1992 Chevy Camaro, 1955-Up Chevy Trucks w/SBC, Angle Plug, D-Port Flange [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CC3DP-P
Price: 376.87 USD
Availability: InStock

^$376⁸⁷

Ships on 09/18/2026

Lowest Price Guarantee

1970-1992 Chevy Camaro, 1955-Up Chevy Trucks w/Small Block Chevy

Shorty Header Set

1970-1992 Chevy Camaro, 1955-Up Chevy Trucks w/Small Block Chevy

Angle Plug, D-Port Flange

Raw/Unfinished

Pair

Sanderson Headers CC3DP-P Features:

The CC3DP header is a compact, small block Chevy header for D-port (GM ZZ4, ZZ6, Fastburn, etc.) cylinder heads. It features a swept-back collector to fit 1970-92 Chevy Camaro, 1955-up Chevy Trucks, and a variety of other vehicle applications and conversions. The CC3DP header features a 15-degree collector angle on the driver side and a 5-degree angle on the passenger side, offering ample space around the cross member and starter. It fits street rod applications using a Camaro front subframe. Depending on the truck’s year, modifications to factory air conditioning and alternator brackets and motor mounts may be required on certain truck applications. Please review the “Vortec-Style Heads in. and “What is a D-Port in. information tabs. The CC3DP is available in a larger 1-5/8 in. primary tube version, part #CC3DP-158. Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2 in.
Collector Diameter: 2.5 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height6.7

Package Width12.1

Package Length16.6

Weight14.76 PG

Part CategoryPerformance Parts

Collector Reducers IncludedNo

Header FinishNatural

QuantitySold as a Pair

Flange Thickness0.38 in.
