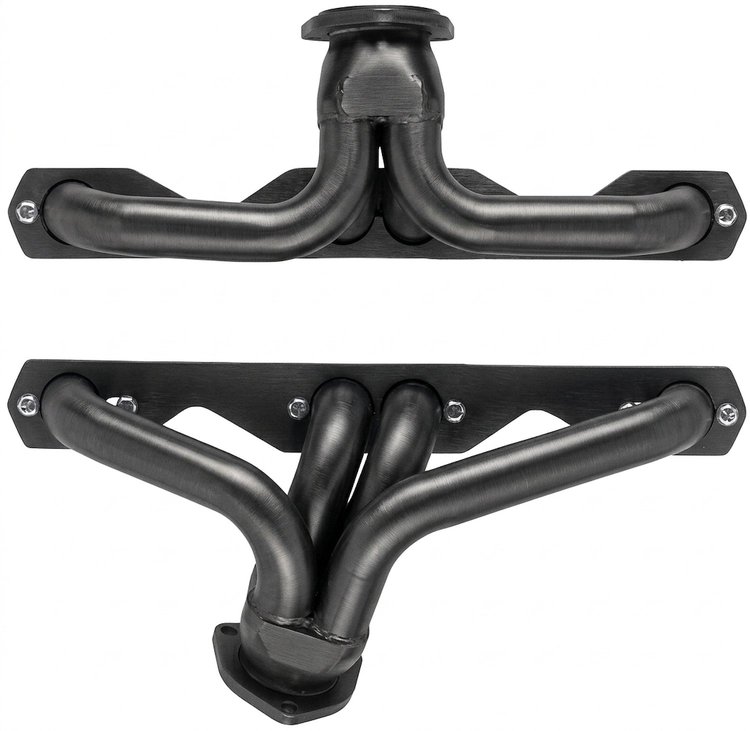

CC4-P Shorty Header Set, 1935-1940 Ford Cars/Trucks, 1960s Ford Trucks w/Small Block Chevy [Raw/Unfinished]

Vehicle Info Needed

CC4-P Shorty Header Set, 1935-1940 Ford Cars/Trucks, 1960s Ford Trucks w/Small Block Chevy [Raw/Unfinished]

Name: CC4-P Shorty Header Set, 1935-1940 Ford Cars/Trucks, 1960s Ford Trucks w/Small Block Chevy [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CC4-P
Price: 376.87 USD
Availability: InStock

^$376⁸⁷

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

1935-1940 Ford Cars/Trucks, 1960s Ford Trucks w/Small Block Chevy

Shorty Header Set

1935-1940 Ford Cars/Trucks, 1960s Ford Trucks w/Small Block Chevy

Raw/Unfinished

Pair

Sanderson Headers CC4-P Features:

The CC4 is a shorty header with a swept-forward driver’s side collector that clears the steering box on 1935-40 Ford cars and trucks, as well as 1960s Ford pickups using the small block Chevy engine. The design of the CC4 allows for ample steering gear clearance for both standard and Saginaw steering boxes, although this application does require an offset motor mount on the driver’s side. The CC4 is compatible with all straight plug cylinder heads and GM-spec angle plug heads. Shorter header spark plugs are required on angle plug cylinder head applications. (Please review the “What is a D-Port in. and “Vortec-Style Heads in. information tabs) Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2 in.
Collector Diameter: 2-1/2 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height6.6

Package Width12.2

Package Length16.6

Weight15.06 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCC4-P

Package Qty1

Package TypeEA
