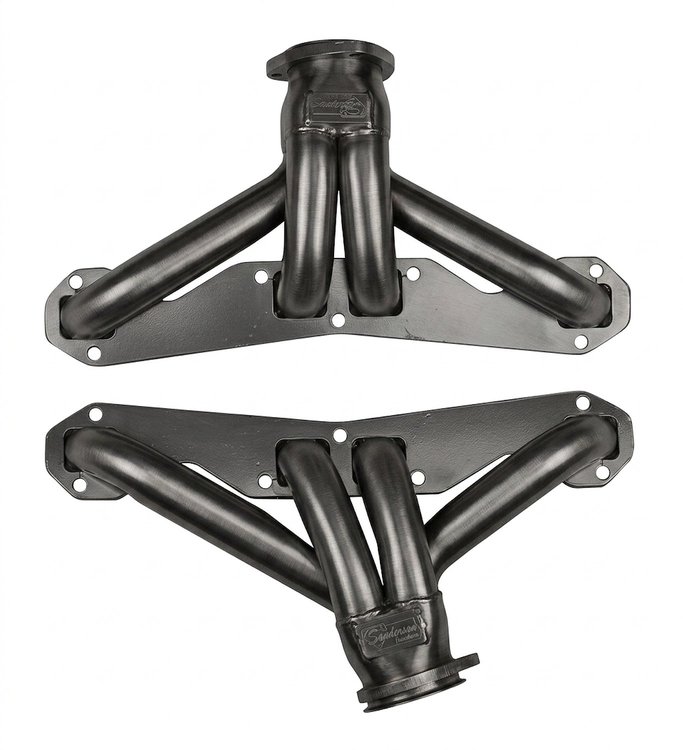

CC409-P Shorty Header Set, Chevy Big Block 348/409 “W” Engines [Raw/Unfinished]

Name: CC409-P Shorty Header Set, Chevy Big Block 348/409 “W” Engines [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CC409-P
Price: 442.99 USD
Availability: InStock

^$442⁹⁹

Ships on 09/11/2026

Lowest Price Guarantee

Chevy Big Block 348/409 “W” Engines

Shorty Header Set

Chevy Big Block 348/409 “W” Engines

Raw/Unfinished

Pair

Sanderson Headers CC409-P Features:

The CC409 header set is a shorty, block hugger design for Chevy “W in. 348/409 engines. It fits a variety of vehicles using the first-generation big block, including street rods, 1958-64 Chevy Impala, 1955-57 Chevy Cars, and many other car and truck applications. The Chevy 409 engine started the muscle car horsepower race of the ’60s, and it is making a comeback. The CC409 is designed to fit tight to the block and will work in street rod chassis and many other cars and trucks without a cross-member under the center of the motor. Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 348/409 V8
Primary Tube Diameter: 1-5/8 in.
Collector Diameter: 2½ in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height8.0

Package Width12.0

Package Length20.0

Weight20.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCC409-P

Package Qty1

Package TypeEA
