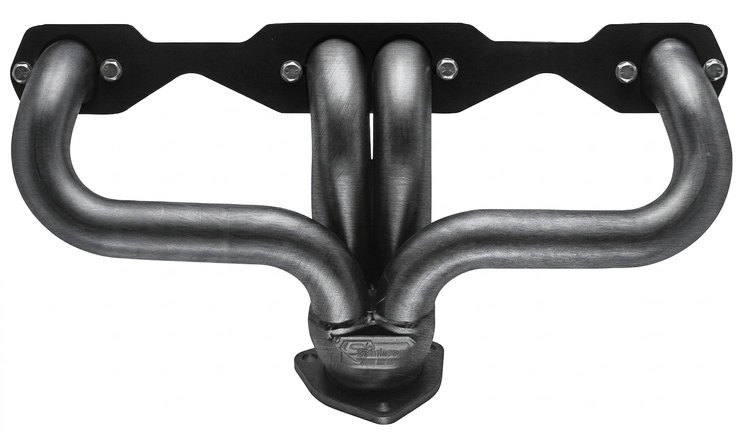

CC5-P Shorty Header Set, Small Block Chevy, Angle Plug [Raw/Unfinished]

Vehicle Info Needed

CC5-P Shorty Header Set, Small Block Chevy, Angle Plug [Raw/Unfinished]

Name: CC5-P Shorty Header Set, Small Block Chevy, Angle Plug [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CC5-P
Price: 387.44 USD
Availability: InStock

^$387⁴⁴

Ships on 09/11/2026

Lowest Price Guarantee

Small Block Chevy

Shorty Header Set

Small Block Chevy

Angle Plug

Raw/Unfinished

Pair

Sanderson Headers CC5-P Features:

The CC5 header set is a short, block hugger design that fits a variety of street rod applications using the small block Chevy engine and angle plug cylinder heads. Although designed for angle plug applications, the CC5 also fits straight plug heads. For example, it fits 1967-69 Chevy Camaro and clears the factory air conditioning (AC) evaporator box on the firewall. Use part #CC5DP for D-port (GM ZZ4, ZZ6, Fastburn, etc.) cylinder heads. Please review the “What is a D-Port? in. and “Vortec-Style Head in. information tabs. Also available in a larger primary tube 1-5/8 in. version, part #CC5-158. Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2 in.
Collector Diameter: 2.5 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height8.0

Package Width12.0

Package Length20.0

Weight18.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCC5-P

Package Qty1

Package TypeEA
