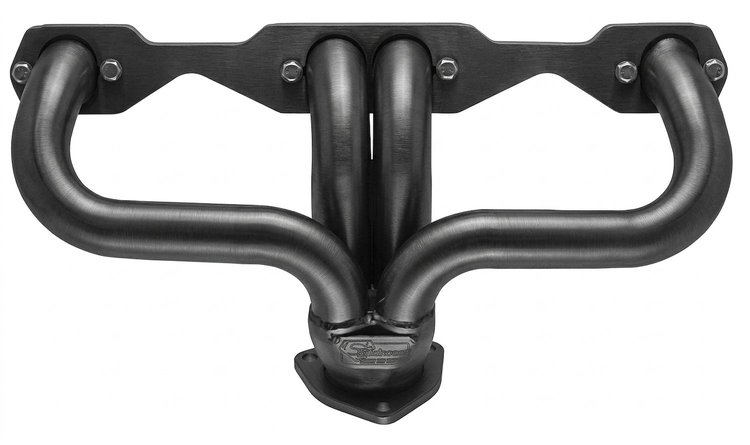

CC5DP-P Shorty Header Set, Small Block Chevy, Angle Plug, D-Port Flange [Raw/Unfinished]

Name: CC5DP-P Shorty Header Set, Small Block Chevy, Angle Plug, D-Port Flange [Raw/Unfinished]
Brand: SANDERSON HEADERS
SKU: 221-CC5DP-P
Price: 387.44 USD
Availability: InStock

^$387⁴⁴

Ships on 09/14/2026

Lowest Price Guarantee

Small Block Chevy

Shorty Header Set

Small Block Chevy

Angle Plug, D-Port Flange

Raw/Unfinished

Pair

Sanderson Headers CC5DP-P Features:

The CC5DP header set is a short, block hugger design that fits a variety of street rod applications using the small block Chevy engine and angle plug, D-port cylinder heads. It fits 1967-69 Chevy Camaro and clears the factory air conditioning (AC) evaporator box on the firewall. For standard port angle plug cylinder heads, use part #CC5. Please review the “What is a D-Port? in. and “Vortec-Style Head in. information tabs. Also available in a larger primary tube 1-5/8 in. version, part #CC5DP-158. Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2 in.
Collector Diameter: 2.5 in.

FEATURES:

16-Gauge Primary and Collector Tube Thickness
3/8 in. Thick Flange
Patented Flange Design Requires NO Gaskets
Tightest Fitting Header Available Anywhere!
Made in the USA

INCLUDES:

Header Bolt Set
Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader

BrandSANDERSON HEADERS

Package Height8.0

Package Width12.0

Package Length20.0

Weight18.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberCC5DP-P

Package Qty1

Package TypeEA
