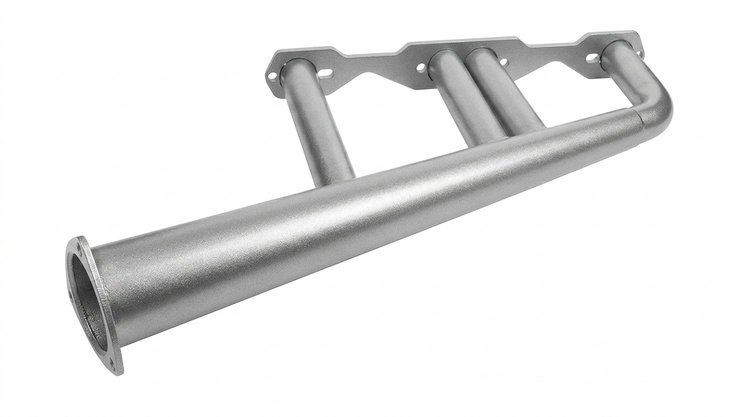

Limefire Header Set

Big Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers CRLF101-SEC Features:

The CRLF101 Limefire header offers the classic Lakes style that looks just right on many fenderless street rods, whether building for that nostalgic look or an ultra-modern design.

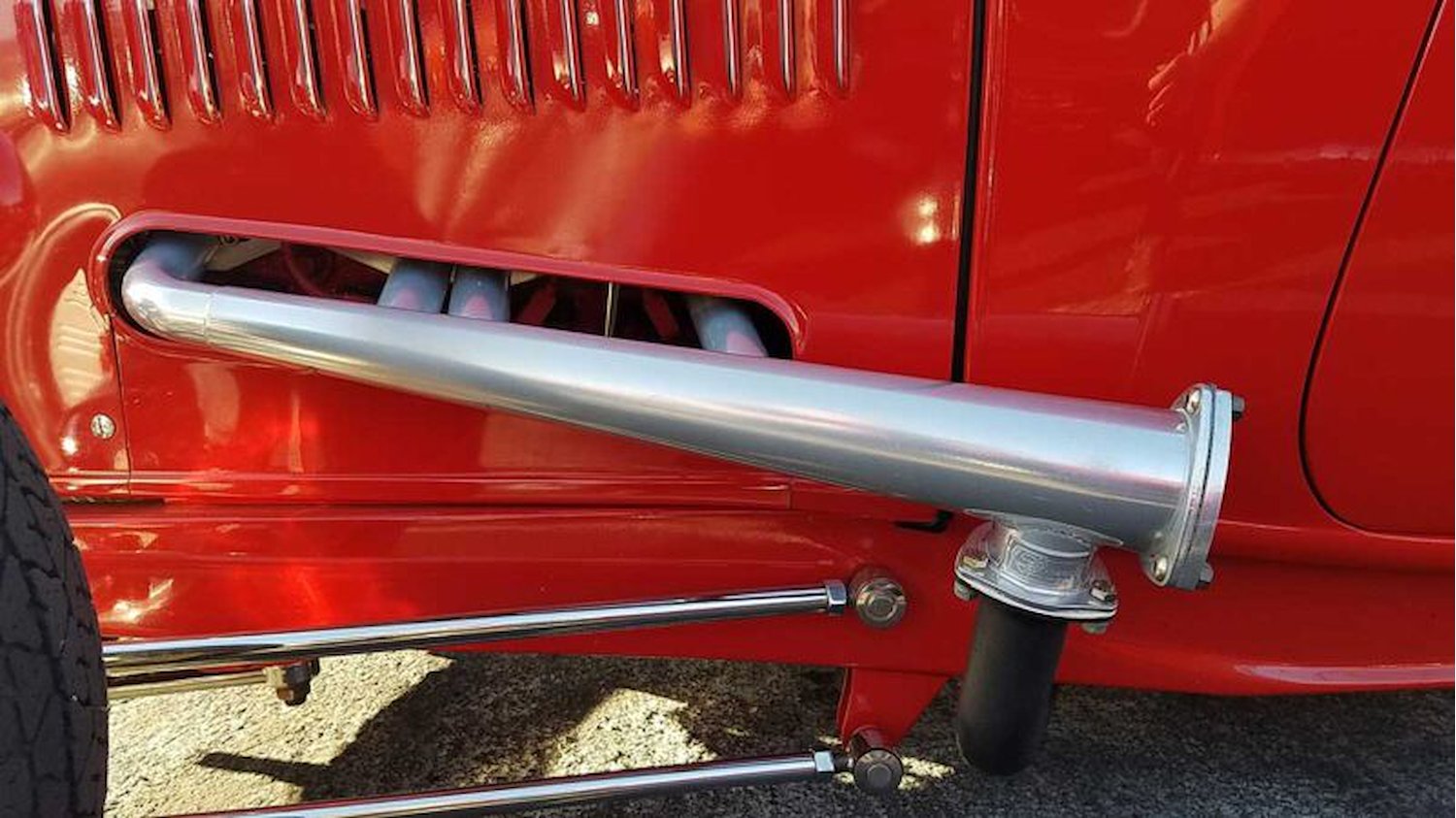

NOTE: Images provided show the small block Chevy and other Limefire applications.
Notes: Turnout Tip, Finned Block Off Plate, and other adapters are sold separately Adding PowerCaps to the Limefire is recommended for engines making decent horsepower or vehicles doing considerable highway driving!

SPECIFICATIONS:

• Engine: Big Block Chevy 396-502 V8
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3½ in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set Standard block off plate

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
