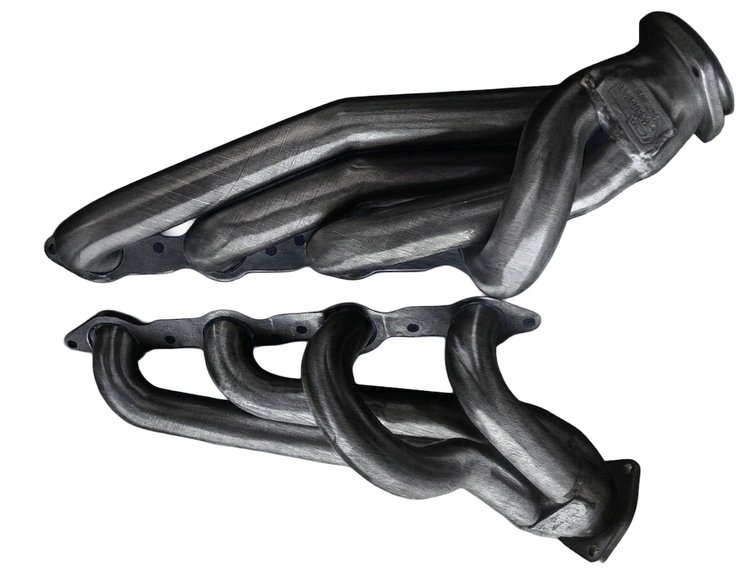

Shorty Header Set

1982-Up Chevy S-10/Blazer 4WD w/LS Engine

Raw/Unfinished

Pair

Sanderson Headers CSLS1584X4-P Features:

The CSLS1584x4 is a conversion header set for GM LS V8 engine swaps in four-wheel drive (4WD) Chevy S-10 truck and Blazer (including GMC S-15) applications. Its compact, tight-fitting design allows it to fit cleanly between the engine and frame rails. For two-wheel drive applications, use part #CSLS158 Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: GM LS1, LS2, LS3, LS4, LS6, LS7
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2½ in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
