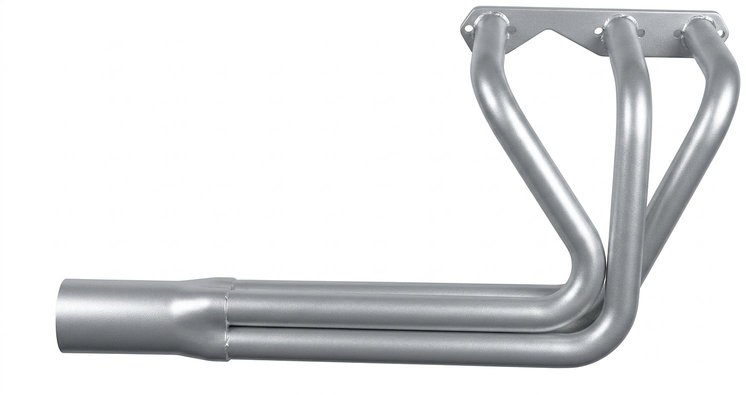

Sprint-Style Roadster Header

Chevy 90-Deg V6

26 in. Turnout Length

Silver Ceramic Coating

Pair

Sanderson Headers CVER100-SEC Features:

The CVER100 is a sprint car style Roadster header for 90-degree Chevy V6 powered open-fendered applications. The CVER100 employs a ‘dummy tube’ at the collector for a four-tube look found on V8 applications. Furnished with 26 in. mufflered turnouts that slip over the header collectors. Comes with all the hardware necessary for installation.

NOTE: Under chassis adapters sold separately

SPECIFICATIONS:

• Engine: 90° Chevy V6 (4.3L / 262 cid, 3.8L / 231 cid)
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 3½ in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set 26 in. Sidepipe Turnouts w/Muffler Inserts

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
