Shorty Header Set

Datsun Z-Car Chassis w/GM LS Engines

Raw/Unfinished

Pair

Sanderson Headers D1-P Features:

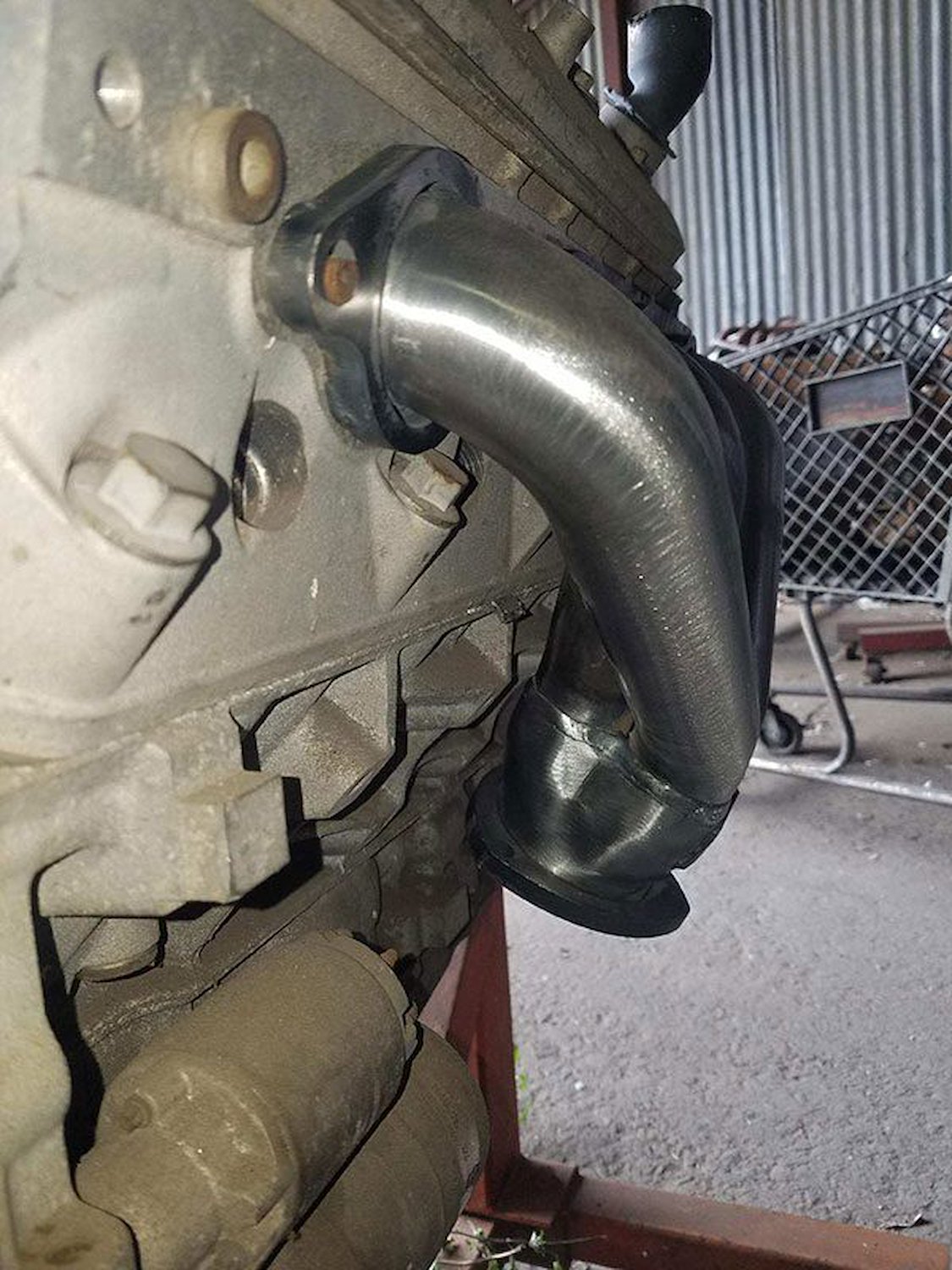

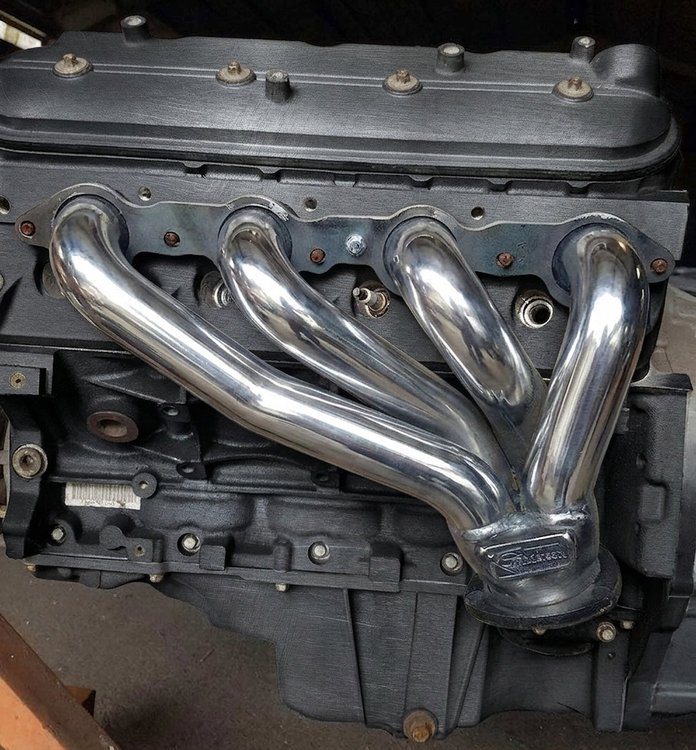

The D1 header set is designed to fit GM LS engines installed in Datsun Z-car chassis applications. The D1 fits tight to the engine block and offers a large 1.75 in.

Primary Tube Diameter and 3.0 in. collector that can sustain high-power applications. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: GM LS1, LS2, LS3, LS4, LS6, LS7
• Primary Tube Diameter: 1-3/4 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
