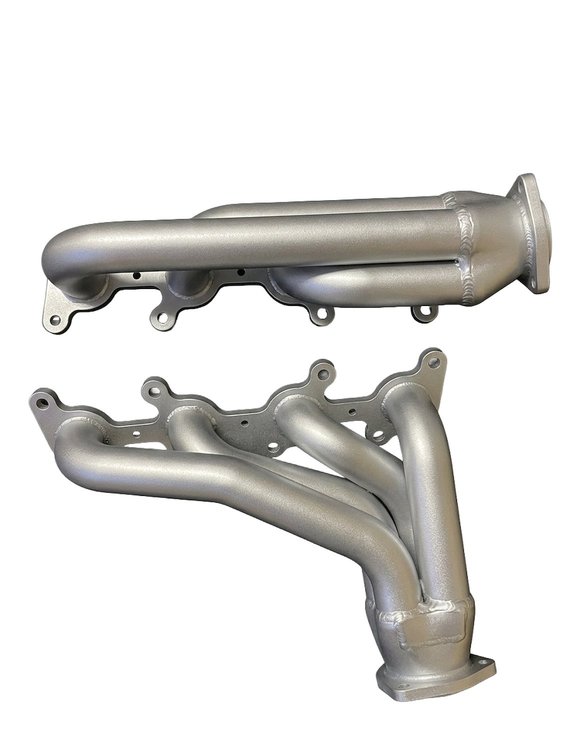

Shorty Header Set

Ford DOHC Modular V8

Oval Port

Silver Ceramic Coating

Pair

Sanderson Headers FF4.6-SEC Features:

The FF4.6 header set is a perfect choice for the dual overhead camshaft (DOHC) Ford Modular V8 (oval port) engine in 1932-up street rods and classic trucks. The compact design clears all popular steering setups and allows ample room for other engine components.

Notes: The FF4.6 is for DOHC (oval port) dual overhead cam modular V8 engines For SOHC (round port) single overhead cam engines, order part #FF4.6S For 3-valve DOHC (D-Port) engines, order part #FF4.63v For 5.0L Coyote engines, order part #FF5.0C Mounting studs/bolts must be provided by the customer or installer Images provided show part number FF5.0C for the Coyote V8

SPECIFICATIONS:

• Engine: Ford Modular DOHC (oval port) V8
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2-1/2 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
