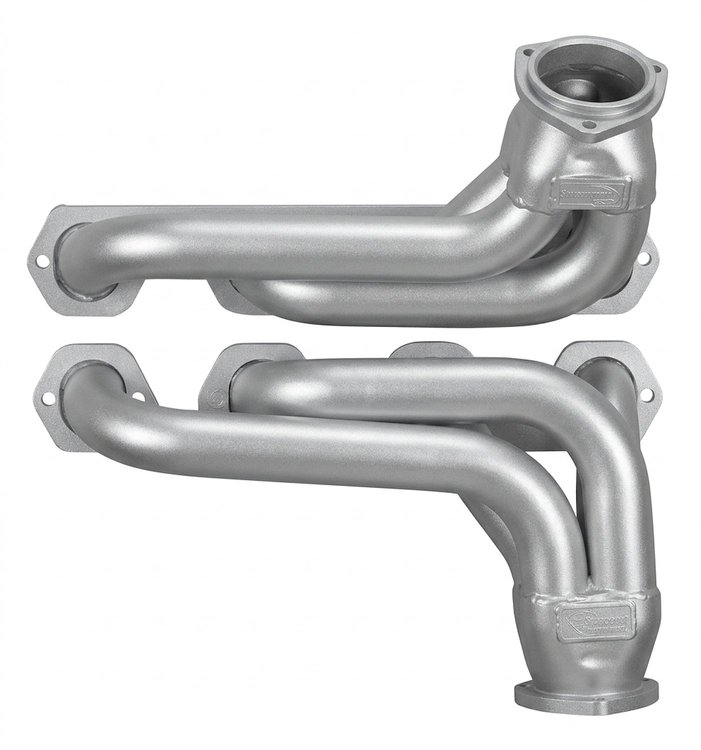

Shorty Header Set

1967-1977 Ford Bronco w/Big Block Ford 429-460ci

Silver Ceramic Coating

Pair

Sanderson Headers FF463-SEC Features:

The FF463 header set for big block Ford 429-460 engines fits Studebaker trucks, Avanti, and some 1966-1977 4×4 Ford Bronco applications. The FF463 is a compact header with a short hang-down length for superior ground clearance. The rear collector angles inward slightly for ease in connecting the under-chassis exhaust piping to complete the system. The FF463 can be useful in other applications in addition to those listed above. Please compare the images and dimensions for compatibility. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Big Block Ford 429-460 V8
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3.0 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
