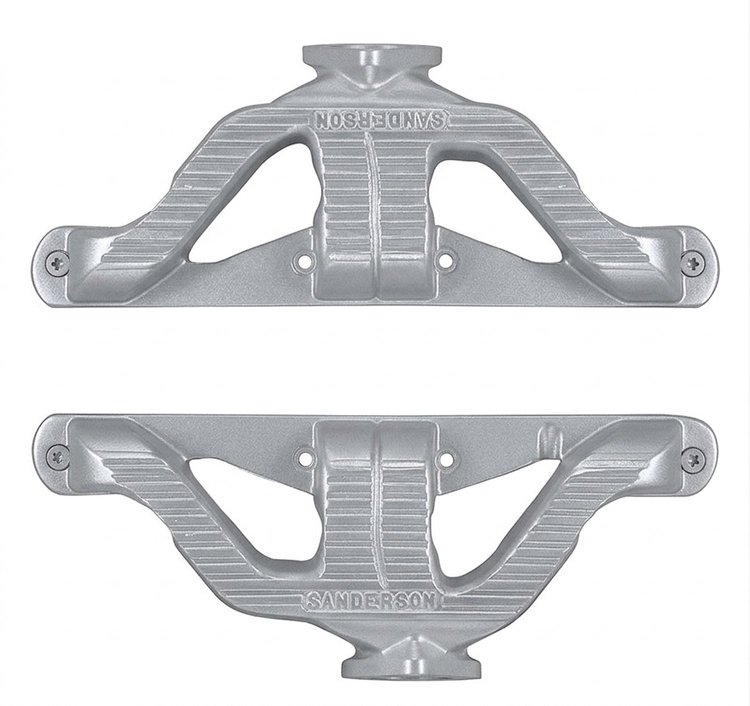

QP1000-SEC Cast-Series Header Set, Small Block Chevy [Silver Ceramic Coating]
Sanderson Headers QP1000-SEC Features:
The QP1000 cast iron “Quiet Performer in. header set overcomes some limitations of tube-style headers while providing a tight fit and producing gains in both low-end torque and high-end horsepower. The QP1000 provides excellent steering clearance, even for Tri-5 (1955-57) Chevy cars using the Saginaw 605 power steering gear. The QP1000 Cast Series header incorporates individual runners to separate the engine’s exhaust pulses, with cast-in anti-reversion baffling to prevent spent gasses from being drawn back into the cylinder during valve timing overlap (when both intake and exhaust valves are open). Scavenging of the cylinders is significantly improved through D-Shaped technology, first used by GM on their HO (High Output) cylinder heads. The result is an exhaust header that creates more torque and power at every RPM range. Other Benefits: Because the QP1000 is more compact than tubular headers, it provides more clearance for steering, accessories, and other chassis and engine components. Cast using the highest-quality materials, the QP1000 is stronger and more reliable than the original factory exhaust, and it offers great looks, too! The QP1000 is Sanderson’s most popular header for small block 55-57 Chevy applications!
Notes: The QP1000 fits straight plug, standard bolt pattern, standard port location cylinder heads. Does NOT fit Vortec-style cylinder heads (Please review the “Vortec-Style Heads in. information tab) Not compatible with BluePrint cylinder heads. (BluePrint heads are based on GM Vortec plug locations) Fits 1968-Up Nova, 1967-69 Camaro/Firebird, Corvette, Tri-Five, and many other applications! Includes all hardware necessary for installation.
SPECIFICATIONS:
- Engine: Small Block Chevy 265-400 V8 Primary Diameter: 1½ in.
- Collector Diameter: 2½ in.
FEATURES:
- 16-Gauge Primary and Collector Tube Thickness
- 3/8 in. Thick Flange
- Patented Flange Design Requires NO Gaskets
- Tightest Fitting Header Available Anywhere!
- Made in the USA
INCLUDES:
- Header Bolt Set
- Collector Reducer Set
FINISH:
- Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.
Installation Notes:
The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! It is only OK to use a header gasket on the cast-series header sets (QP1000 and QP2000) Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
