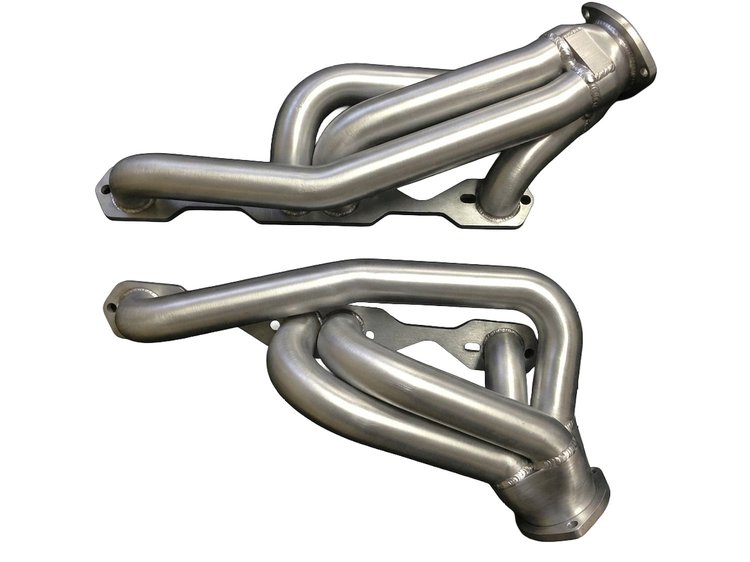

CS11AP-134-SEC Shorty Header Set, 1982-Up Chevy S-10/Blazer w/Small Block Chevy, Angle Plug [Silver Ceramic Coating]
InfoVehicle Info Needed
SANDERSON HEADERSPART NUMBER: 221-SAN000043

CS11AP-134-SEC Shorty Header Set, 1982-Up Chevy S-10/Blazer w/Small Block Chevy, Angle Plug [Silver Ceramic Coating]

$82647
ShippingShips on 12/07/2026
Lowest PriceLowest Price Guarantee

Items You Need

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60
Lo Boy Creeper 250 lb. Capacity

JEGS

Lo Boy Creeper 250 lb. Capacity

Part Number : 555-81154
$5999$65.99
You Save$6.00
Spark Plug Wire Boot Guard, Black

JEGS

Spark Plug Wire Boot Guard, Black

Part Number : 555-40301
$699$7.99
You Save$1.00
Blue Bolt Locker Medium Strength

JEGS

Blue Bolt Locker Medium Strength

Part Number : 555-28084
$699$7.99
You Save$1.00

1982-Up Chevy S-10/Blazer w/Small Block Chevy
Shorty Header Set
  • 1982-Up Chevy S-10/Blazer w/Small Block Chevy
  • Angle Plug
  • Silver Ceramic Coating
  • Pair

    Sanderson Headers CS11AP-134-SEC Features:

    The CS11AP-134 is a large 1-3/4 in. tube small block Chevy conversion header for V8 engine swaps in two-wheel drive (2WD) Chevy S-10 truck and Blazer (including GMC S-15) applications. The CS11AP-134 is a very compact header design that fits cleanly between the engine and frame rails. This is NOT a fenderwell exit header! The CS11AP-134 header works with virtually all engine swap kits.


  • WARNING: The vehicle’s steering shaft will run between the engine block and header on this application. Solid motor mounts, engine plates, or the installation of a torque limiter are strongly recommended to prevent the engine from shifting, which may cause the steering shaft to bind.
    Notes: For standard port angle plug cylinder head applications Available for 4×4 applications, order #CS11-4×4 For applications requiring a smaller
  • Primary Tube Diameter, order CS11AP For angle plug, d-port cylinder heads, order #CS11DP or CS11DP-134 Includes all hardware necessary for installation.


  • SPECIFICATIONS:
    • Engine: Small Block Chevy 265-400
    • Primary Tube Diameter: 1-3/4 in.
    • Collector Diameter: 3.0 in.

    FEATURES:
    • 16-Gauge Primary and Collector Tube Thickness
    • 3/8 in. Thick Flange
    • Patented Flange Design Requires NO Gaskets
    • Tightest Fitting Header Available Anywhere!
    • Made in the USA

    INCLUDES:
    • Header Bolt Set
    • Collector Reducer Set

    FINISH:
    • Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

    Installation Notes:

    The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeHeader
    BrandSANDERSON HEADERS
    Package Height9.0
    Package Width12.0
    Package Length23.0
    Weight19.0 PG
    Part CategoryPerformance Parts
    Collector Reducers IncludedYes
    Header FinishSilver Ceramic Coated
    QuantitySold as a Pair
    Flange Thickness0.38 in.
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedNo
    Weld-UpNo
    Collector Attachment3-Bolt Flange
    Flange StyleStandard
    TunedNo
    Collector Diameter3 in.
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Primary Tube Outside Diameter1 3/4 in.
    Primary Tube Gauge16-Gauge
    Header StyleShorty
    Catalytic Converter(S) IncludedNo
    Vendor Part NumberCS11AP-134-SEC
    Package Qty1
    Package TypeEA
