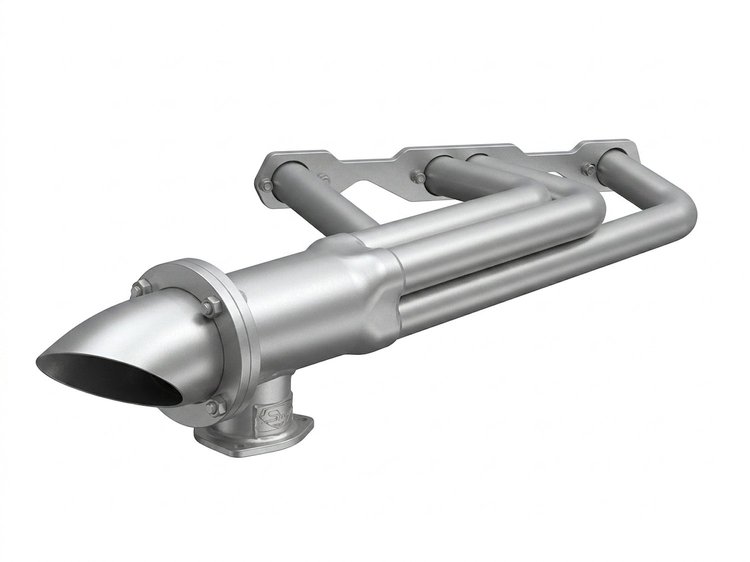

Lakes-Style Header Set

Big Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers JaysterBBC-SEC Features:

The Jayster header is named after Sanderson header designer and custom fabricator Jay Wangerine. The Jayster offers a whole new take on the classic lakes-style outside chassis header. The unique four-into-one design provides an eye-catching addition to any roadster or highboy. ORDER

Notes: Turnout Tip, Finned Block Off Plate, and other adapters are sold separately Adding PowerCaps to the Jayster is recommended for engines making decent horsepower or vehicles doing considerable highway driving! Available with or without the under-chassis exhaust connection Dimensions provided are for standard (typical) applications. Please call us for assistance with wider frames/bodies, such as 40s pickups. We can adjust the dimensions to fit virtually any chassis/body width (extra charges may apply).

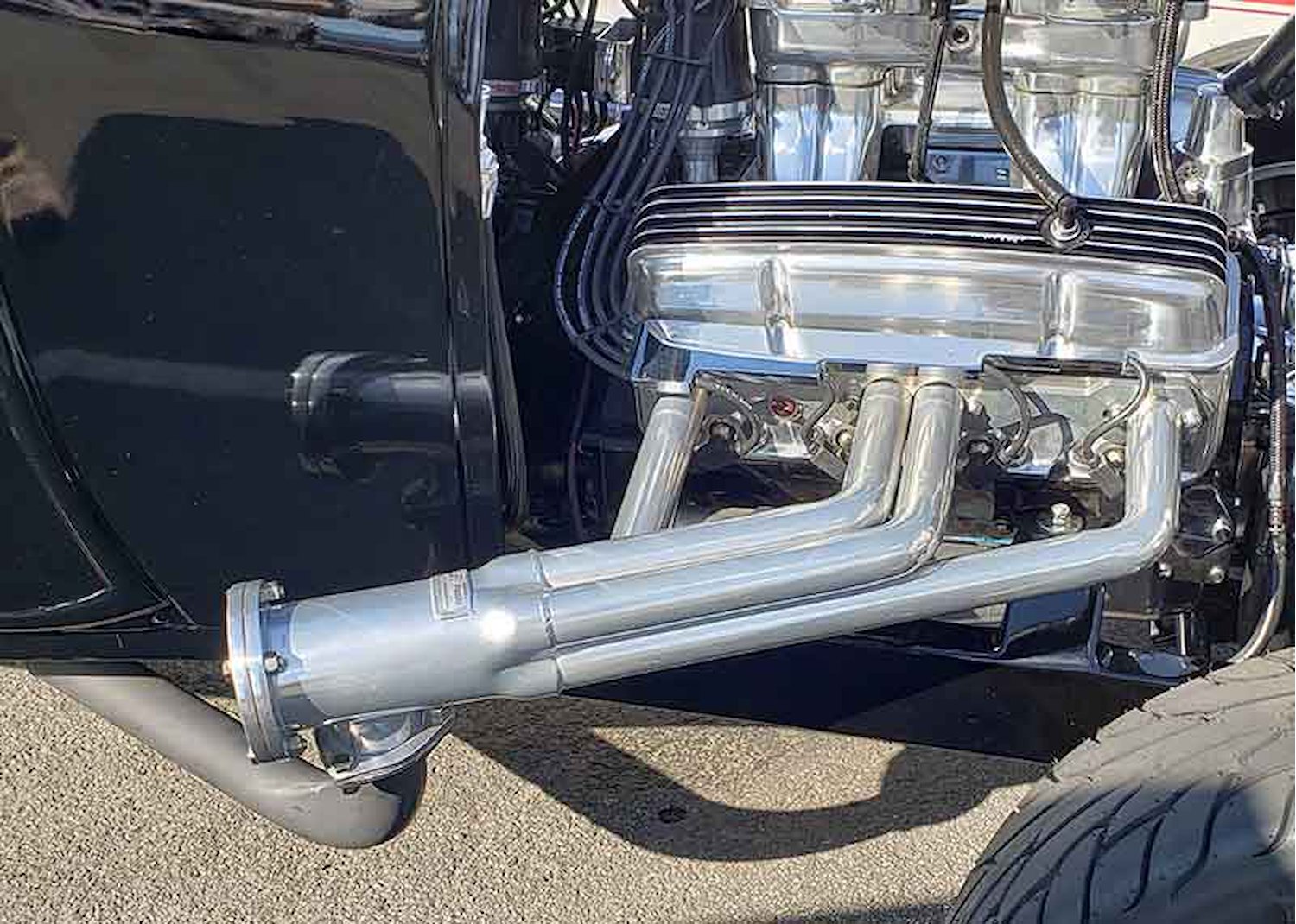

NOTE: The provided images are from various Jayster engine applications.

SPECIFICATIONS:

• Engine: Big Block Chevy 396-502 V8
• Primary Tube Diameter: 1-7/8 in.
• Collector Diameter: 3½ in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set (to the engine) Standard block off plate

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
