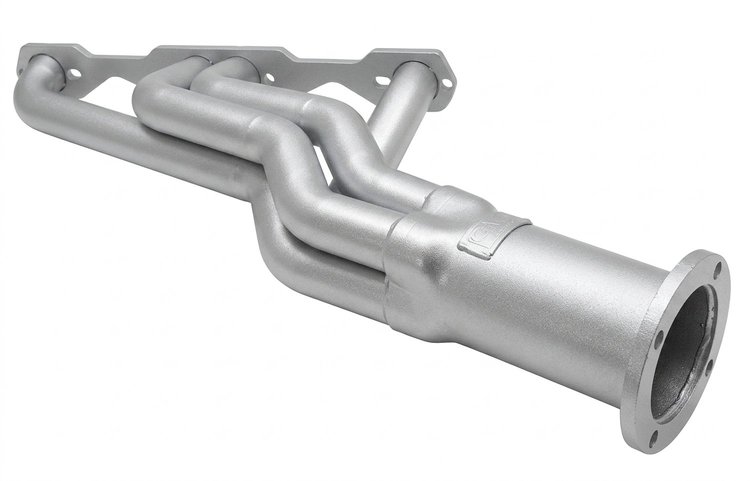

Full-Fender Lakes-Style Header Set

Small Block Chevy

Silver Ceramic Coating

Pair

Sanderson Headers JaysterFFSBC-SEC Features:

The Jayster Full-Fender header set is a modified version of the Sanderson Jayster header designed by Sanderson custom fabricator Jay Wangerine. The Jayster Full-Fender is designed for street rod applications with front fenders. Please select options carefully, and contact us if you have any questions. Exit Option: Most fendered vehicle applications do not have provisions for an under-chassis exhaust because the fenders and running boards are in the way. However, some crafters have modified their vehicles with an access provision to route a downpipe. For this reason, the default Jayster Full Fender does NOT include an under-chassis adapter. However, it is available when needed. ORDER

Notes: Turnout Tip, Finned Block Off Plate, and other adapters are sold separately The small block Chevy Jayster is available for standard or D-port cylinder heads (please review the “What is a D-Port? in. information tab. The dimensions provided are for standard (typical) applications. For wider frames/bodies, such as 40s pickups, please CALL US for assistance. We can adjust the dimensions to fit virtually any chassis/body width (extra charges may apply).
NOTE: The provided images are from various Jayster engine applications.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400 V8
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 3½ in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set (to the engine) Standard block-off plate

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
