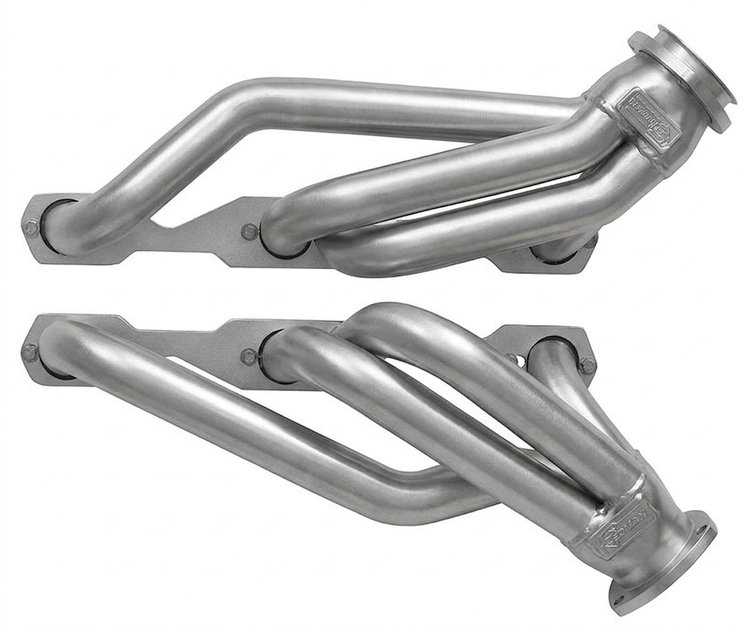

Shorty Header Set

1955-1957 Chevy Cars w/Small Block Chevy

Unisteer Rack & Pinion w/Ididit or Similar Steering Column

Silver Ceramic Coating

Pair

Sanderson Headers US56-SEC Features:

The US56 is a full-length, 1-5/8 in. primary tube shorty header for small block Chevy engines 1955-57 Chevy applications using a Unisteer rack and pinion conversion and Ididit (or similar) steering column. It fits straight plug, angle plug, and D-Port cylinder heads (when D-port is selected). Please review the “What is a D-port? in. information tab. Angle plug cylinder head applications use a slightly different passenger side header than what is pictured. Compatible with automatic or manual transmission applications using a hydraulic clutch setup ONLY. Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-5/8 in.
• Collector Diameter: 2-1/2 in.

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8 in. Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

• Sanderson Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Installation Notes:

The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
