S-10 Truck Forward Exit V8 Conversion Header Kit - Small Block Chevy - Standard Ports

Name: S-10 Truck Forward Exit V8 Conversion Header Kit - Small Block Chevy - Standard Ports
Brand: SCHOENFELD
SKU: 649-1398AK1
Price: 794.36 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

S-10 Truck Forward Exit V8 Conversion Headers

S-10 Truck Forward Exit V8 Conversion Header Kit

1982-1993 Chevy S-10

Small Block Chevy

1-3/4 in. Tube Diameter

Includes:

Forward Exit Headers
Fender Exit Bezels
Rivets
V-Band Clamps
Exhaust Tubing

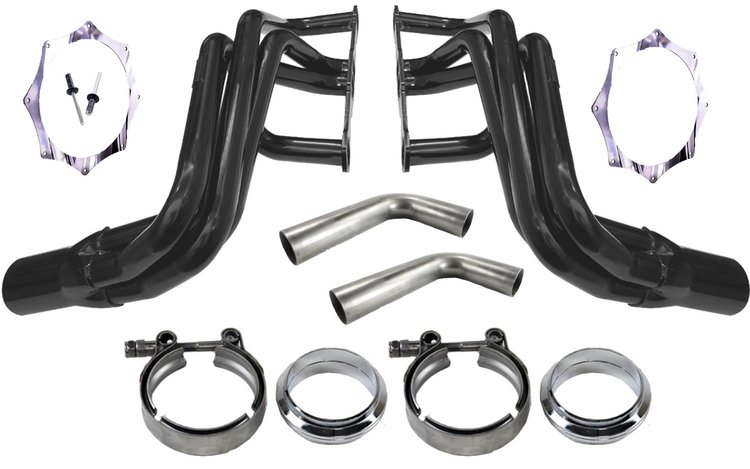

Kit Includes:
- (1) Schoenfeld 1 3/4 in. Forward Exit Headers, 3 1/2 in. Collector Diameter - 649-1398A
- (2) JEGS Fender Exit Bezels, For 4 in. Collectors - 555-31952
- (1) JEGS Aluminum 3/16 in. Rivets, 250/pkg - 555-82300
- (2) Granatelli Flat Flange V-Band Clamps - 467-308535-M
- (2) Patriot Exhaust 90 degree Mild Steel Exhaust Tubing, 3 1/2 in. Diameter - 737-H7063

Headers to Fit in Tight Spaces

Schoenfeld Small Block Chevy Production Chassis Headers are available in several styles and built from 16-gauge or 18-gauge steel with tuned primaries that fit in spaces with limited access on your project. Each set of exhaust headers has a high-quality, black-painted finish and comes with gaskets and hardware for bolt-on installation at a budget-friendly price.

Part TypeHeader

Product LineSchoenfeld Small Block Chevy Production Chassis Headers

BrandSCHOENFELD

Part CategoryPerformance Parts

QuantitySold as a kit

Collector Diameter3.5 in (88.9 mm)

Part FitmentSemi Universal

Engine Make/SizeSBC

Flange Thickness (In).3125

Tube Diameter1.75 in (44.5 mm)

Gauge16

Package Qty1
