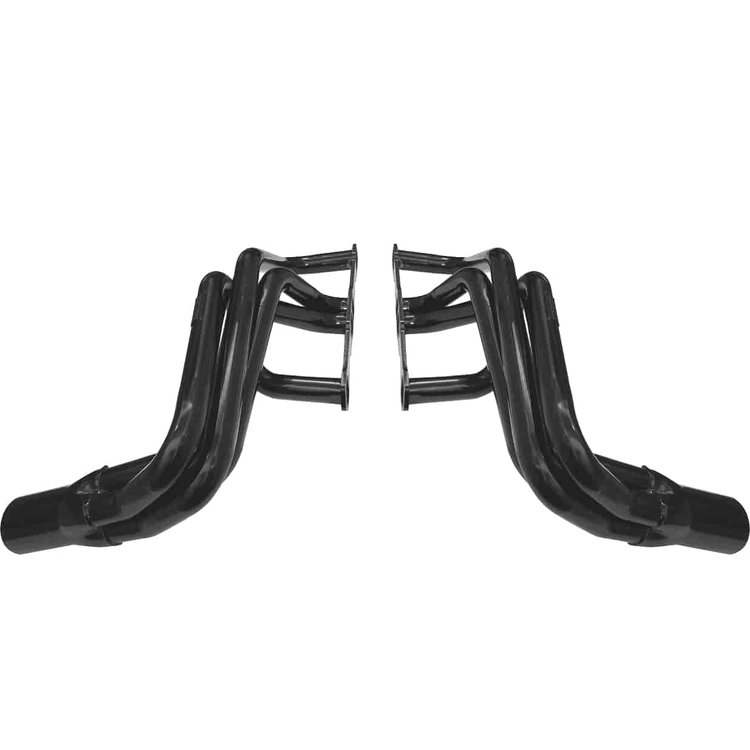

S-10 Truck Forward Exit V8 Conversion Headers - Small Block Chevy - Spread Ports
InfoVehicle Info Needed
SCHOENFELDPART NUMBER: 649-1398ASP

S-10 Truck Forward Exit V8 Conversion Headers - Small Block Chevy - Spread Ports

$52499
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

S-10 Truck Forward Exit V8 Conversion Headers
S-10 Truck Forward Exit V8 Conversion Headers
  • Small Block Chevy
  • Spread Ports
  • 5/16 in. Flange
  • 16 ga. Primaries
  • 1-3/4 in. Tube Diameter
  • 3-1/2 in. Collector Diameter
  • 8 in. Collector Length
  • Pair

    Features

    • Exits lower fender in front of wheel well
    • Provides excellent spark plug access
    • 30 in. width between headers for radiator clearance
    • Excellent steering shaft clearance

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeHeader
    BrandSCHOENFELD
    Package Height11.9
    Package Width20.7
    Package Length33.4
    Weight41.19 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number1398ASP
    Package Qty1
    Package TypeEA
