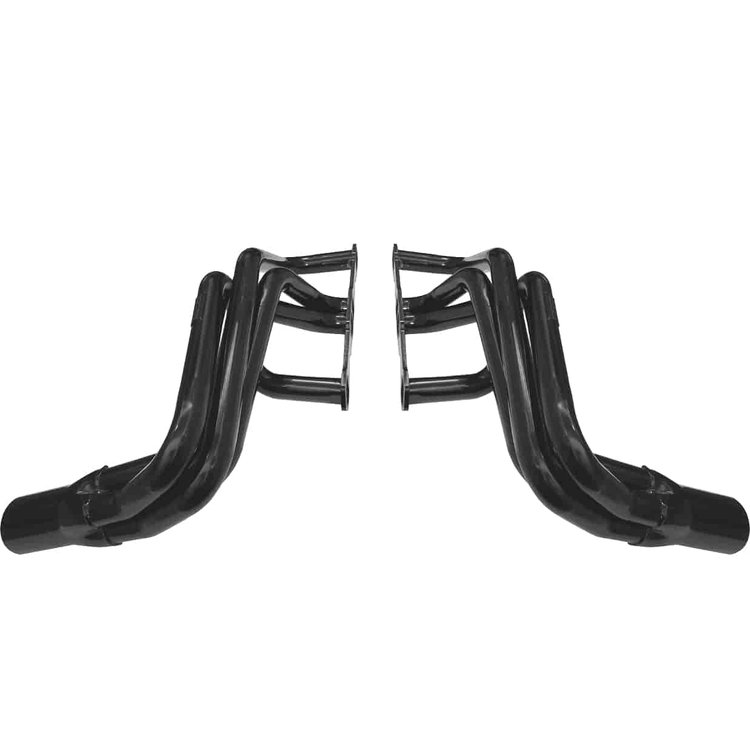

S-10 Truck Forward Exit V8 Conversion Headers - Small Block Chevy - Standard Ports

Name: S-10 Truck Forward Exit V8 Conversion Headers - Small Block Chevy - Standard Ports
Brand: SCHOENFELD
SKU: 649-1399VA
Price: 556.99 USD
Availability: InStock

^$556⁹⁹

Ships on 11/11/2026

Lowest Price Guarantee

S-10 Truck Forward Exit V8 Conversion Headers

S-10 Truck Forward Exit V8 Conversion Headers

Small Block Chevy

Standard Ports

5/16 in. Flange

16 ga. Primaries

1-7/8 in. to 2 in. Tube Diameter

3-1/2 in. Collector Diameter

9 in. Collector Length

Pair

Features

Exits lower fender in front of wheel well
Provides excellent spark plug access
30 in. width between headers for radiator clearance
Excellent steering shaft clearance

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Headers to Fit in Tight Spaces

Schoenfeld Small Block Chevy Production Chassis Headers are available in several styles and built from 16-gauge or 18-gauge steel with tuned primaries that fit in spaces with limited access on your project. Each set of exhaust headers has a high-quality, black-painted finish and comes with gaskets and hardware for bolt-on installation at a budget-friendly price.

Part TypeHeader

Product LineSchoenfeld Small Block Chevy Production Chassis Headers

BrandSCHOENFELD

Package Height12.0

Package Width20.5

Package Length33.25

Weight38.3 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number1399VA

Package Qty1

Package TypeEA
