Vehicle Info NeededSCHOENFELDPART NUMBER: 649-1966

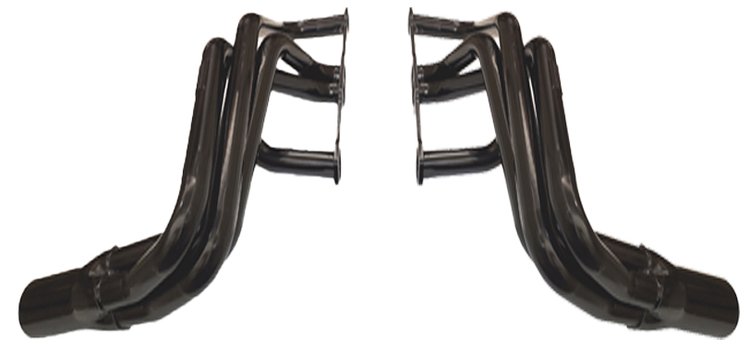

Forward Exit Conversion Headers 1982-1992 Chevy Camaro - Standard Port Small Block Chevy
$46999
Ships on 09/08/2026
Lowest Price GuaranteeChevy Camaro Forward Exit V8 Conversion Headers
Forward Exit V8 Conversion Headers1982-1992 Chevy Camaro Small Block Chevy Standard Ports 1.750 in. Tube Diameter 3.500 in. Collector Diameter 0.3125 in. (5/16 in.) Flange Includes: (2) Headers, Gaskets, and Header Bolts
Schoenfeld Headers 1966 Features:
- 16 Gauge Primaries
- Compatible with Straight and Angle Plug Heads
- Steel Construction to Handle High Heat without Bending or Warping
Notes:
- Gaskets and Bolts Included
- 8 in. Collector Length
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeHeader
BrandSCHOENFELD
Package Height12.0
Package Width21.0
Package Length33.5
Weight40.0 PG
Part CategoryPerformance Parts
Gaskets IncludedYes
Hardware IncludedYes
Outlet Diameter3.5 in (88.9 mm)
MaterialSteel
Bolts/Studs IncludedYes
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block
ApplicationRace/Strip
Exit PositionFender Exit
Primary Tube Diameter1.75 in (44.5 mm)
Gauge16
Vendor Part Number1966
Package Qty1
Package TypeEA
