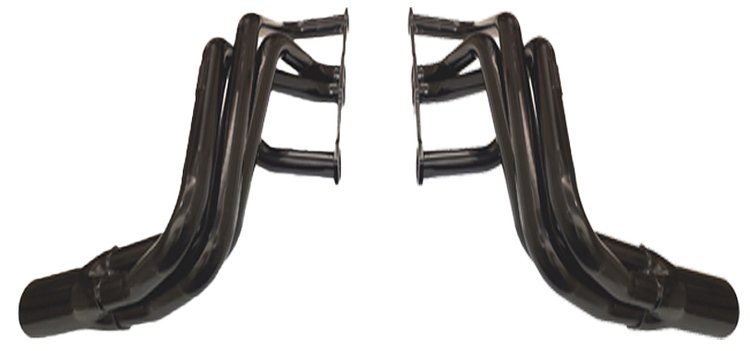

Forward Exit Conversion Headers 1982-1992 Chevy Camaro - Standard Port Small Block Chevy
InfoVehicle Info Needed
SCHOENFELDPART NUMBER: 649-1966V

Forward Exit Conversion Headers 1982-1992 Chevy Camaro - Standard Port Small Block Chevy

$50299
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy Camaro Forward Exit V8 Conversion Headers
Forward Exit V8 Conversion Headers
  • 1982-1992 Chevy Camaro
  • Small Block Chevy
  • Standard Ports
  • 1.750 in. - 1.875 in. Tube Diameter
  • 3.500 in. x 9 in. Collector
  • 0.3125 in. (5/16 in.) Flange
  • Includes: (2) Headers, Gaskets and Header Bolts

    Schoenfeld Headers 1966V Features:

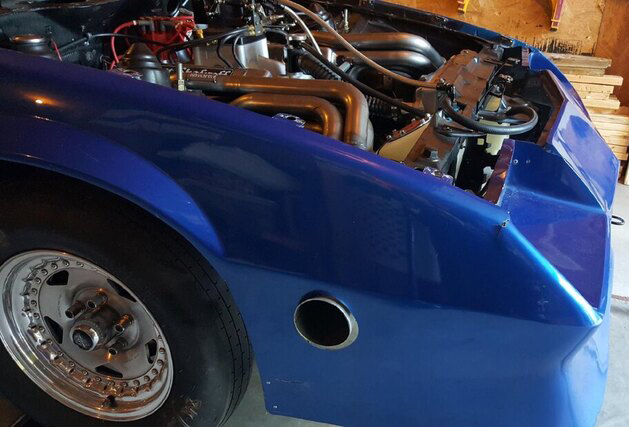

    • Lower Fender Exit
    • Increased Clearance for Steering Shaft
    • 16 Gauge Primaries
    • Compatible with Straight and Angle Plug Heads
    • Steel Construction to Handle High Heat without Bending or Warping

    Note: Fitment may involve steering shaft modifications.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • Headers to Fit in Tight Spaces

      Schoenfeld Small Block Chevy Production Chassis Headers are available in several styles and built from 16-gauge or 18-gauge steel with tuned primaries that fit in spaces with limited access on your project. Each set of exhaust headers has a high-quality, black-painted finish and comes with gaskets and hardware for bolt-on installation at a budget-friendly price.

    Part TypeHeader
    Product LineSchoenfeld Small Block Chevy Production Chassis Headers
    BrandSCHOENFELD
    Package Height11.6
    Package Width21.0
    Package Length33.0
    Weight40.0 PG
    Part CategoryPerformance Parts
    Header MaterialSteel
    Gaskets IncludedYes
    Headers IncludedYes
    Hardware IncludedYes
    Outlet Diameter3.5 in (88.9 mm)
    Bolts/Studs IncludedYes
    Part FitmentSemi Universal
    Engine Make/SizeChevy Small Block
    ApplicationRace Car
    Exit PositionFender Exit
    Primary Tube Diameter1 3/4 - 1 7/8
    Gauge16
    Vendor Part Number1966V
    Package Qty1
    Package TypeEA
