GMSUV-105B Adjustable Panhard Bar w/ Del-Sphere Joints, 2000-2020 GM SUV [Gloss Black]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-GMSUV-105B

GMSUV-105B Adjustable Panhard Bar w/ Del-Sphere Joints, 2000-2020 GM SUV [Gloss Black]

$19900
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Lo Boy Creeper 250 lb. Capacity

JEGS

Lo Boy Creeper 250 lb. Capacity

Part Number : 555-81154
$5999$65.99
You Save$6.00
99-Piece Tool Set with 4-Drawer Carry Case

JEGS

99-Piece Tool Set with 4-Drawer Carry Case

Part Number : 555-80428
$5279$143.99
You Save$91.20
Round Magnetic Parts Tray [5 1/2 in. Round]

JEGS

Round Magnetic Parts Tray [5 1/2 in. Round]

Part Number : 555-80080
$549$5.99
You Save$0.50
Master Bit Set

JEGS

Master Bit Set

Part Number : 555-W1719
$3399$37.99
You Save$4.00

GM
Adjustable Panhard Bar w/ Del-Sphere Joints
  • 2000-2020 GM SUV
  • Gloss Black Finish

    Spohn Performance GMSUV-105B Features:

    Replace the factory's weak, stamped steel, rubber bushed, flexible panhard bar with one of our heavy duty adjustable set-ups! This adjustable rear panhard track bar features Del-Sphere pivot joints that provide for 22-Deg of bind-free articulation.

    It allows for centering the rear end housing after lowering or lifting the ride height and provides for serious handling performance. It also allows for alignment of the rear end for clearance when running larger tires and greatly increases the rear end's lateral stability.

    Del-Sphere Pivot Joints:

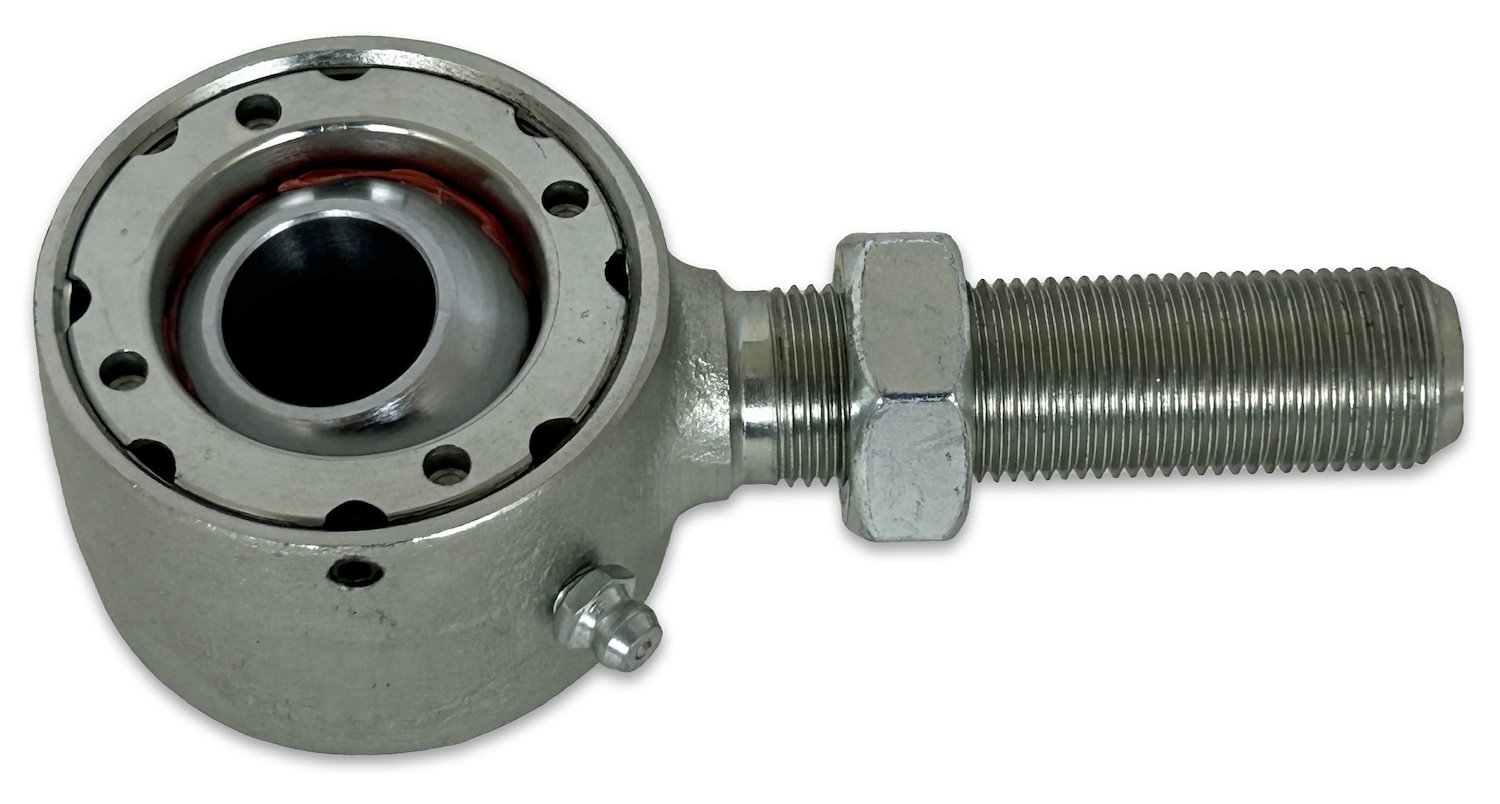

    The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin® bushing cups.

    Think of the Del-Sphere pivot joint as a Delrin® bushed spherical rod end. The Delrin® bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 22-Deg of rotation! Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.

    Our Del-Sphere pivot joint features a one piece forged and heat treated 4130 chrome moly housing, a heat treated and chrome plated chrome moly spherical ball, Delrin® bushing cups, heat treated retainer washers and snap ring, an external grease fitting, and a beautiful silver zinc plated housing finish.

    Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.

    • 1.25 in. x .095 in. wall DOM tubing
    • Stronger, yet lighter than stock
    • TIG welded 4130N chrome moly threaded tube adapters
    • 3/4 in. Del-Sphere pivot joints on both ends of the panhard bar provide for 22° of unrestricted articulation
    • Right hand and left hand threaded ends with integral wrench flat allows for easy on-truck adjustment
    • CNC machined through sleeve and silver zinc plated steel spacers keep the pivot joints perfectly centered inside of the vehicle mounting brackets
    • Ships to you fully assembled and jig set at OEM length
    • Powder coated for a brilliant and durable finish
    • Mounting Hardware Included: No
    • Adjustable: Yes
    • Finish: Powder Coated
    • Mounting Hole Diameter: 14
    • Grade Type: Performance
    • Color: Gloss Black
    • Compressed Length: 32.875
    • End 1 Type: Del-Sphere Pivot Joint
    • End 2 Type: Del-Sphere Pivot Joint
    • Extended Length: 35.250
    • Material: Mild Steel
    • OEM Length: 33.750
  • Part TypePanhard Bar
    BrandSPOHN PERFORMANCE
    Package Height4.1
    Package Width4.6
    Package Length39.8
    Weight7.58 PG
    Part CategoryPerformance Parts
    End 2 TypeDel-Sphere Pivot Joint
    Mounting Hole Diameter14
    Compressed Length32.875
    End 1 TypeDel-Sphere Pivot Joint
    Mounting Hardware IncludedNo
    Extended Length35.25
    MaterialMild Steel
    Part FitmentDirect Fit
    FinishPowder Coated
    AdjustableYes
    Vendor Part NumberGMSUV-105B
    Package Qty1
    Package TypeEA
