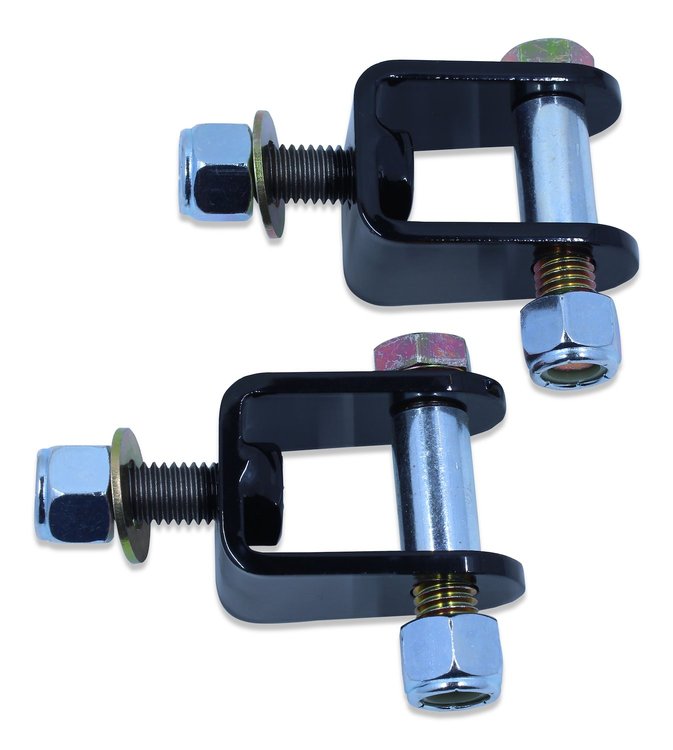

Spohn Performance LSM-125-SBS-500 Features:

Our rear lower shock relocation mounting brackets rotate the bottom of the rear shock to eliminate lower shock mount bind. The bottom of the rear shock is rotated 90-Deg from factory clocking and mounted inside of a double shear mounting clevis.

This allows the bottom of the shock to pivot freely on the bottom mounting bolt instead of being in a bound up single shear cantilevered set up like from the factory.

Our rear lower shock relocation mounting bracket clevises are built from CNC laser cut and formed 3/16 in. thick steel. They're CNC formed as one piece with no welds for maximum strength and durability.

They're an easy 100% bolt in installation with the use of basic hand tools through the factory lower rear shock mounting location and they'll install on any factory or aftermarket rear axle housings. No drilling or welding is required.

These mounts are designed for standard sized lower shock bushings that are 1.25 in. wide and mount with a 1/2 in. diameter bolt. All required mounting hardware (Grade 8) is included and our mounts feature a brilliant and durable gloss black powder coated finish.

Priced per Pair --- Qty. 1 = 1 Pair

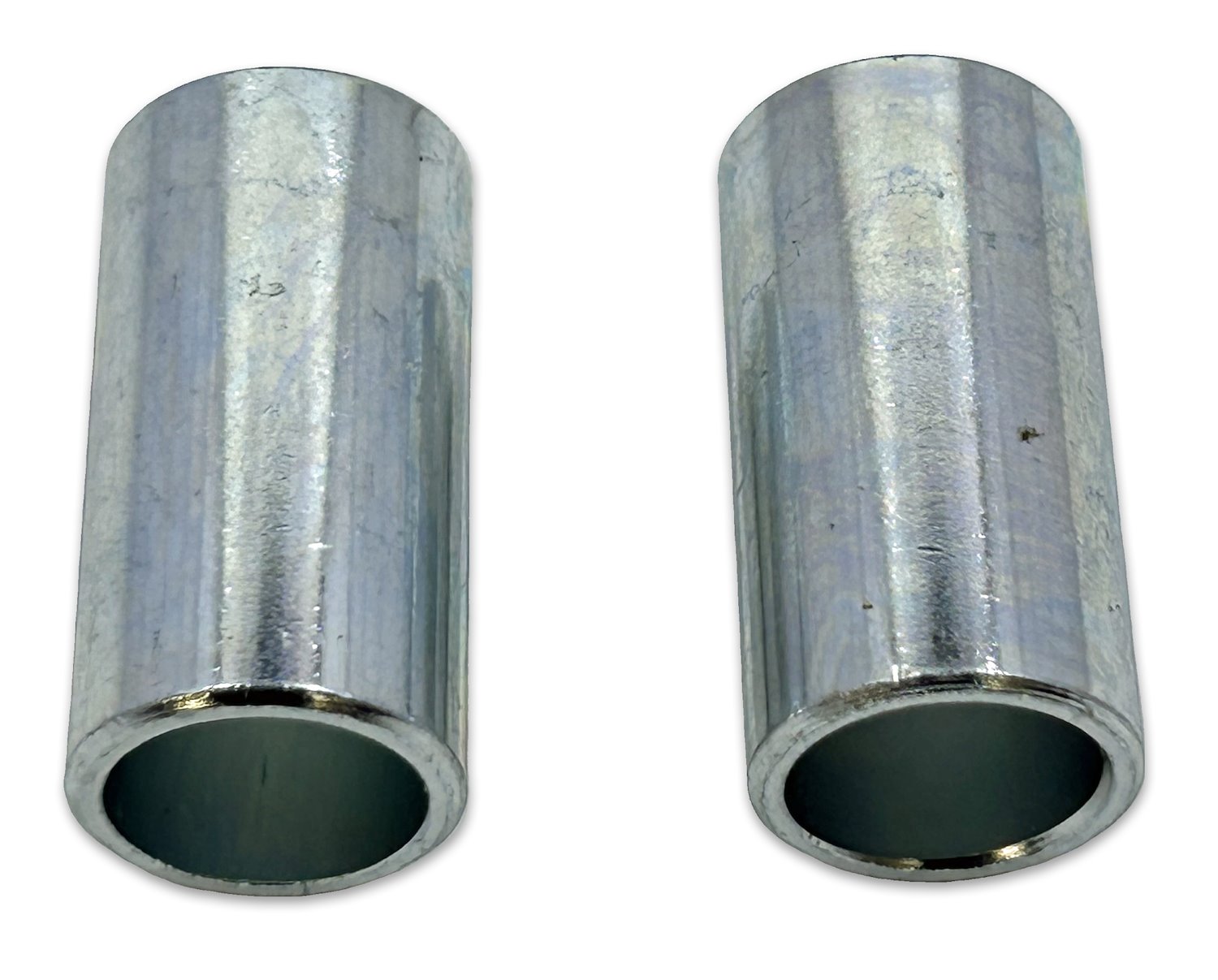

Fitment Note: If you have factory or standard replacement rear shocks that mount over a stud that is bolted to the rear axle housing your lower rear shock bushing may not be equipped with a bolt sleeve. With our relocation brackets you will need to have a bolt sleeve through the lower shock bushing. This kit includes two (2) of our SKU LSM-SBS-500 shock bolt sleeves that are 5/8 in. o.d. x 1/2 in. i.d. x 1.25 in. long.

• Fits 1.25 in. wide x 5/8 in. bushing bore x 1/2 in. mounting bolt shock eye
• Rotates the bottom of the rear shock to eliminate lower shock mount bind
• Bottom of the rear shock is rotated 90° from factory clocking and mounted inside of a double shear mounting clevis
• CNC laser cut and formed 3/16 in. thick steel mounting clevis
• CNC formed as one piece with no welds for maximum strength and durability
• 1/2 in.-13 x 1.5 in. long Grade 8 mounting stud
• New Grade 8 shock mounting hardware is included
• Powder coated gloss black for a brilliant and durable finish
• Includes new shock bolt sleeves (2)
• Bracket Mounting Hardware: Included
• Bracket Stud Length: 1.50
• Bracket Stud Size: 1/2-13
• Color: Gloss Black
• Finish: Powder Coated
• Material: 3/16 in. Steel
• Shock Bolt Sleeves: Included
• Shock Bushing Bore: 5/8
• Shock Mounting Bolt Size: 1/2
• Shock Mounting Hardware: Included
• Shock Mounting Width: 1.25
