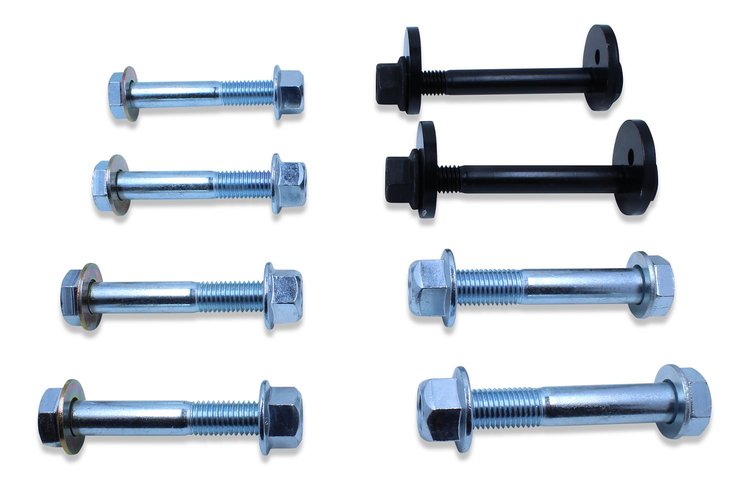

Spohn Performance D94-99-CAM-980-981 Features:

This package provides ALL of the mounting hardware required to completely mount the front upper and lower control arms in one convenient package!

This complete front upper and lower control arms mounting hardware kit includes the cam bolts, eccentric cam washers, and flanged lock nuts for the front position of the front lower control arms as well as all of the mounting bolts and nuts for the rear position of the front lower control arms and both ends of the front upper control arms.

We have yet to remove a pair of front lower control arms from a 1994-1999 Dodge Ram truck that we did not have to cut off the front cam bolts.

Due to the design of the factory's front mounting cam bolts, water can enter through the side of the bolt causing it to rust fast to the bolt sleeve inside of the front lower control arm's bushing.

This front lower control arm cam bolts package includes two (2) new super strength Grade 12.9 front cam bolts, two (2) new eccentric cam washers, and two (2) new flanged in.Top Lock in. nuts.

This package also includes six (6) Grade 10.9 bolts, six (6) flat washers and six (6) flanged in.Top Lock in. nuts for the rear position of both front lower control arms and both ends of the front upper control arms.

All hardware is black e-coated or zinc plated for maximum corrosion protection and an extremely durable finish

• (2) 14mm Grade 12.9 cam bolts (LCA Front Position)
• (2) Eccentric cam washers (LCA Front Position)
• (2) 14mm flange lock nuts (LCA Front Position)
• Black E-Coated for maximum corrosion protection and an extremely durable finish

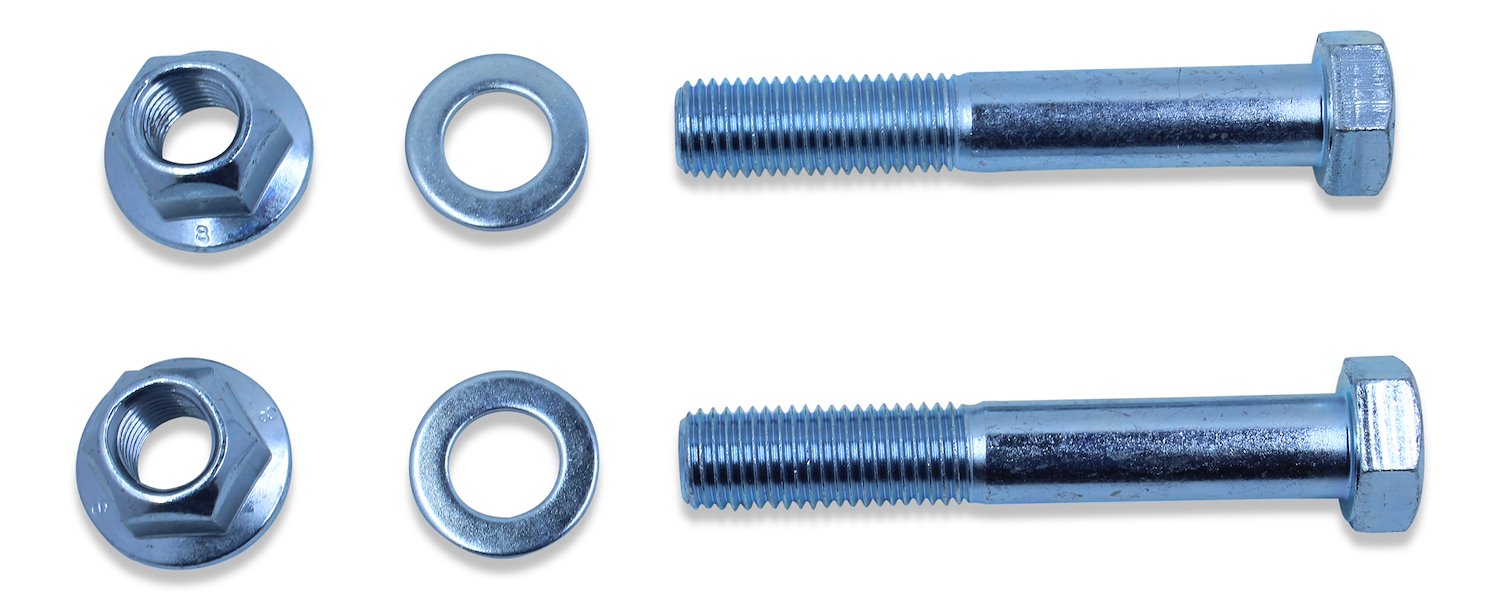

• (2) 14mm Grade 10.9 bolts (LCA Rear Position)
• (2) 14mm flanged head steel lock nuts (LCA Rear Position)
• (2) 14mm flat washers (LCA Rear Position)
• (4) 12mm Grade 10.9 bolts (UCAs)
• (4) 12mm flanged head steel lock nuts (UCAs)
• (4) 12mm flat washers (UCAs)
• Zinc plated finish for corrosion protection
• Cam Bolt Finish: Black E-Coated
• Cam Bolt Grade: 12.9
• Cam Bolt Hex Size: 22
• Cam Bolt Nut Hex Size: 21
• Cam Bolt Nut Type: Flanged Top Lock
• Cam Bolt Quantity: Two (2)
• Cam Bolt Thread Pitch: 2.00
• Cam Bolt Thread Size: 14
• Cam Bolt Washer Size: 14
• Cam Bolt Washer Type: Eccentric Cam
• Rear Position Bolt Grade: 10.9
• Rear Position Bolt Hex Size: 19
• Rear Position Bolt Quantity: Two (2)
• Rear Position Bolt Thread Pitch: 2.00
• Rear Position Bolt Thread Size: 14
• Rear Position Hardware Finish: Zinc Plated
• Rear Position Nut Hex Size: 21
• Rear Position Nut Type: Flanged Top Lock
• Rear Position Washer Grade: 8
• Rear Position Washer Type: Flat
• Upper Bolt Grade: 10.9
• Upper Bolt Hex Size: 19
• Upper Bolt Quantity: Four (4)
• Upper Bolt Thread Pitch: 1.75
• Upper Bolt Thread Size: 12
• Upper Hardware Finish: Zinc Plated
• Upper Nut Hex Size: 21
• Upper Nut Type: Flanged Top Lock
• Upper Washer Grade: 8
• Upper Washer Type: Flat
