FG-104-6774-4130R Tubular Adjustable Rear Panhard Track Bar Fits Select 1967-1974 Ford, Mercury Models, Bright Red
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-J000135

FG-104-6774-4130R Tubular Adjustable Rear Panhard Track Bar Fits Select 1967-1974 Ford, Mercury Models, Bright Red

Color:

Bright Red
$16900
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Ford
Tubular Adjustable Rear Panhard Track Bar with Polyurethane Bushings
  • 4130N Chrome Moly
  • 1967-1974 Ford Galaxie & LTD
  • Mercury Marauder & Marquis
  • Bright Red

    Spohn Performance FG-104-6774-4130R Features:

    Replace the factory's weak and flexible rubber bushed rear panhard bar on your 1967-1974 Ford Galaxie and LTD and Mercury Marauder and Marquis with our heavy duty adjustable unit!
    After almost 60 years of use the factory panhard bar is corroded and the rubber bushings are cracked and dry rotted which adversely effects the performance of your car.
    Our adjustable rear panhard bar allows for centering the rear end after lowering and provides for serious handling performance. It also allows for alignment of the rear end for clearance when running larger tires and greatly increases the rear end's lateral stability. All ends are fitted with grease fittings for easy lubrication of the fluted polyurethane bushings.

    • 1 in. x .095 in. wall 4130N chrome moly tubing
    • Stronger, yet lighter than stock
    • Polyurethane bushings (fluted) with grease fittings for easy lubrication
    • Powder coated for a brilliant and durable finish

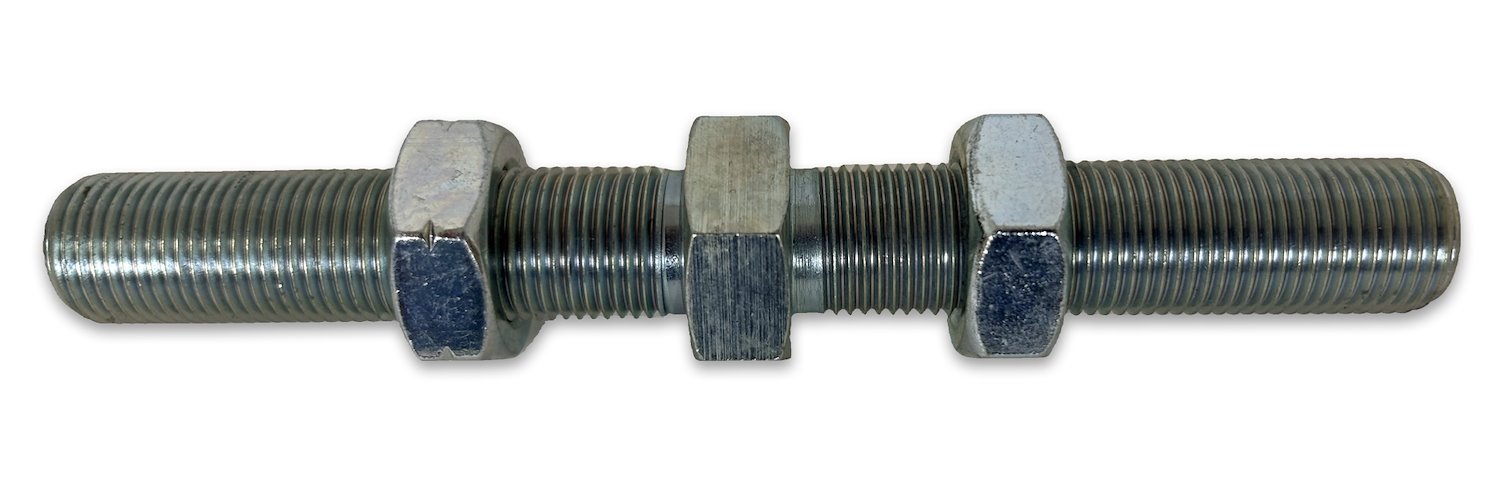

    • Right hand and left hand threaded silver zinc plated 4140 chrome moly double male adjuster threads into TIG welded 4130 chrome moly threaded tube adapters
    • This is the highest quality, easiest to adjust on the car panhard bar on the market!
    • Ships to you fully assembled and jig set at factory length
    • Increase Your Rear Ends Lateral Support

      Spohn Performance Panhard Bars greatly increase rear-end lateral stability and balance. These panhard bars are constructed from high-strength, lightweight 4130N Chrome Moly to withstand the rigors of daily driving to track days. Available in sold and adjustable versions (application pending).

    Part TypePanhard Bar
    Product LineSpohn Performance Panhard Bars
    BrandSPOHN PERFORMANCE
    Package Height4.0
    Package Width4.0
    Package Length40.0
    Weight5.0 PG
    Part CategoryPerformance Parts
    Grease Fitting IncludedYes
    End 2 TypeBushing
    Pre-GreasedYes
    Bushing ColorRed
    Compressed Length30.25
    Bushing MaterialPolyurethane
    ColorBright Red
    Mounting Hardware IncludedNo
    Material4130N Chrome Moly
    AdjustableYes
    Mounting Hole Diameter9/16
    GreaseableYes
    End 1 TypeBushing
    Extended Length32.25
    Part FitmentDirect Fit
    FinishPowder Coated
    Bushings IncludedYes
    Vendor Part NumberFG-104-6774-4130R
    Package Qty1
    Package TypeEA
