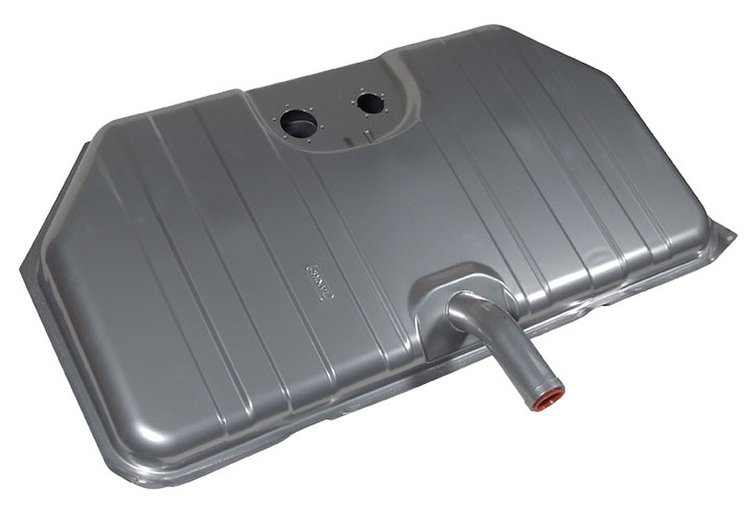

Tanks Inc. TM32BN-T-KIT6 Features:

This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. Please note that this tank will not work with narrowed leaf spring kits. 1969 Chevy Camaro and Pontiac Firebird EFI Fuel Tank Fuel Injection Ready! Utilizes our GPA series fuel pumps , available in sizes from 109 to 450 liters per hour. Uses aftermarket 5-bolt senders . Multiple Ohm ranges available to work with factory (0-90 ohm) or aftermarket gauges. If using tube sender or reed sender , length is 7". EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation. Perfect for your Pro-Touring, Autocross or Road Racing Ride Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car. Looks like an OE tank when installed. Coated galvanized steel then Powder Coated Silver. 18 Gallon Capacity 1" Deeper than stock Longer mounting straps included with the tank Size is: 39-3/8" x 20-7/8" x 8-3/4" For a complete setup simply choose a GPA fuel pump and fuel sending unit.

• 1969 Chevy Camaro and Pontiac Firebird EFI Fuel Tank
• Fuel Injection Ready!
• Utilizes Tanks Inc. GPA series fuel pumps , available in sizes from 109 to 450 liters per hour.
• Uses aftermarket 5-bolt senders . Multiple Ohm ranges available to work with factory (0-90 ohm) or aftermarket gauges. If using tube sender or reed sender , length is 7 in..
• EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
• Perfect for your Pro-Touring, Autocross or Road Racing Ride
• Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
• Looks like an OE tank when installed.
• Coated galvanized steel then Powder Coated Silver.
• 18 Gallon Capacity
• 1 in. Deeper than stock
• Longer mounting straps included with the tank
• Size is: 39-3/8 in. x 20-7/8 in. x 8-3/4 in.
• Note: Includes a 400 lph fuel pump and sending unit compatible with factory gauges and straps. This is a fuel injection style fuel tank. The front of this tank is narrowed to 27 in. to clear up to a 345mm tire and 3 in. exhaust for mini-tub applications. This tank will not work with narrow leaf spring kits.
