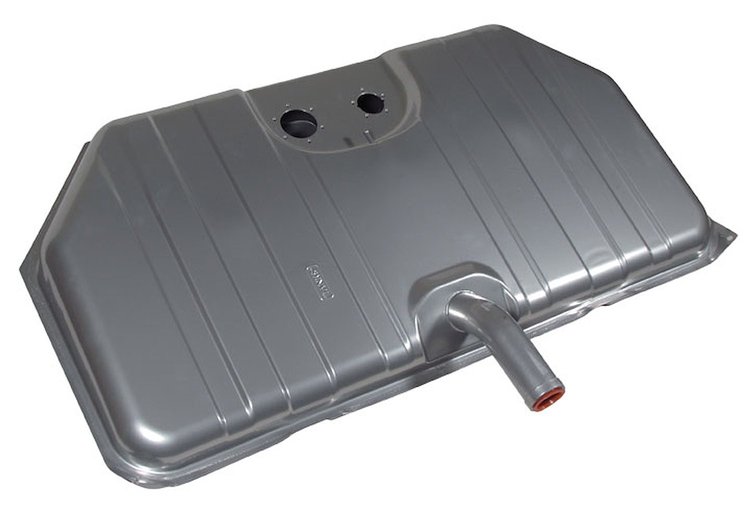

TM32BN-T Narrowed Corner 18 Gallon EFI Gas Tank for 1969 Chevy Camaro/Pontiac Firebird
InfoVehicle Info Needed
TANKS INC.PART NUMBER: 246-TM32BN-T

TM32BN-T Narrowed Corner 18 Gallon EFI Gas Tank for 1969 Chevy Camaro/Pontiac Firebird

$33899
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

GPA-4 255 LPH GPA Fuel Pump Module

TANKS INC.

GPA-4 255 LPH GPA Fuel Pump Module

Part Number : 246-GPA-4
$22999
TAN-GML GM 1965 & Later Fuel Sending Unit 0-90 Ohm

TANKS INC.

TAN-GML GM 1965 & Later Fuel Sending Unit 0-90 Ohm

Part Number : 246-TAN-GML
$4499
AD-85 Stainless Steel Access Door ID 8-1/8 in.X4-3/4 in. OD 6-1/2 in.x10 in.

TANKS INC.

AD-85 Stainless Steel Access Door ID 8-1/8 in.X4-3/4 in. OD 6-1/2 in.x10 in.

Part Number : 246-AD-85
$5149
SL24 24 in. Rubber Strap Liners

TANKS INC.

SL24 24 in. Rubber Strap Liners

Part Number : 246-SL24
$812

GM
Narrowed Corner EFI Gas Tank
  • 1969 Chevy Camaro
  • 1969 Pontiac Firebird
  • Fuel Pump and Sender Not Included
  • 18 Gallon
  • 1 in. Deeper Than Stock
  • Galvanized Steel
  • Powder Coated Silver
  • Sold Individually

    Tanks Inc. TM32BN-T Features:

    This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications.  The front of this tank is narrowed to 27 in. to clear up to a 345 tire and 3 in. exhaust.  To help regain fuel capacity from the notched corners, this tank is 1 in. deeper than stock.  Even if you do not have a mini-tubbed car, this tank will work on a stock car where you need a little more clearance for exhaust.  Please note that this tank will not work with narrowed leaf spring kits.

    • Longer mounting straps are included with the tank
    • 1969 Chevy Camaro and Pontiac Firebird EFI Fuel Tank
    • Fuel Injection Ready!
    • Utilizes Tanks Inc. GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
    • Uses aftermarket 5-bolt senders. Multiple Ohm ranges available to work with factory (0-90 ohms) or aftermarket gauges. If using a tube sender or reed sender, the length is 7 in..
    • EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
    • Perfect for your Pro-Touring, Autocross or Road Racing Ride
    • Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
    • Looks like an OE tank when installed.
    • Coated galvanized steel then powder-coated silver.
    • 18 Gallon Capacity
    • Size is: 39-3/8 in. x 20-7/8 in. x 8-3/4 in.
    • Note: Front of this tank is narrowed to 27 in. to clear up to a 345 tire and 3 in. exhaust
    • Tanks Inc. Fuel Tanks — Premium Replacements, Built for Restorations and Street Rods

      Tanks, Inc. produces high-quality replacement fuel tanks engineered to deliver top performance and durability for classic cars, street rods, and custom builds. Their tanks are available in steel, stainless steel, and roto-molded polyethylene, with precision stamping, full baffling, and fit-for-use features. Whether you need an exact OE-style fit or want upgraded capacity with modern fuel delivery components, Tanks, Inc. has options built to look good, hold up, and perform.

      Show More

      When it comes to delivering dependable fuel delivery and restoration-grade construction, the Tanks Inc. Universal Coated Steel EFI Gas Tank stands out. Designed by Tanks Inc. — a trusted name in fuel-system innovation since 1980 — this tank is engineered for classic cars, street rods and custom builds where fit, quality and performance all matter.

      Constructed with coated alloy or stainless steel, the design includes precision stamping, full baffling and EFI-ready features so you get worry-free operation in demanding conditions. Whether you’re replacing an aging unit or upgrading for higher performance, this tank allows you to confidently upgrade your complete fuel system.

      Key benefits include: Direct-fit options as well as universal models, making it easier to match your build and minimize fabrication. Corrosion-resistant steel or stainless materials — ideal for years of service and resale value. Internal pickup tubing and baffling reduce fuel slosh and support modern fueling demands, especially under load or cornering. Designed to accept modern senders and fuel equipment, giving you flexibility for your setup.

      No more worrying about a generic “automotive fuel tank” that lacks fitment precision or durability. For premium restoration builds or performance upgrades, this solution meets your needs. Whether you’re sourcing new “automotive gas tanks” for a classic or seeking a high-quality “auto gas tanks” replacement for your ride, don’t compromise — click Add to Cart and take your fuel system to the next level.

    Part TypeFuel Tank
    Product LineTanks Inc. Fuel Tanks and Components
    BrandTANKS INC.
    Package Height10.5
    Package Width26.75
    Package Length46.45
    Weight34.04 PG
    Part CategoryReplacement Parts
    Sending Unit IncludedNo
    Fuel Pump IncludedNo
    Tank Length39.38 in.
    Baffled SumpYes
    ColorSilver powdercoated
    Tank Width20.88 in.
    QuantitySold Individually
    Mounting Hardware IncludedNo
    Fuel Tank MaterialSteel
    Tank Height7.75 in.
    Fuel Tank Capacity18 gallons
    Lock Ring Kit IncludedNo
    Part FitmentDirect Fit
    Mounting Straps IncludedYes
    Fuel Sump Welded On TankNo
    Vendor Part NumberTM32BN-T
    Package Qty1
    Package TypeEA
