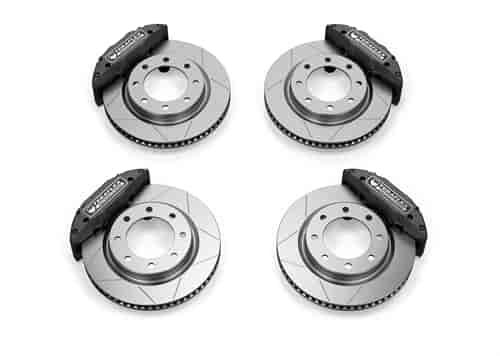

Upgrade Your Factory Brakes

TeraFlex Delta Brake Systems are tuned and balanced specifically for your Jeep Wrangler to give you increased stopping power over your factory braking system to help you get control of your oversized wheels and tires. Both front and rear brakes utilize the huge 4-piston calipers that are constructed from T6 6061 forged aluminum which has been zinc and e-dipped. 17 in. wheels with 4.5 in. of backspacing are required to fit over the 14 in. diameter rotors. For easy service, the brake pads simply drop into place so you don't have to disassemble your calipers. Works with the factory ABS and proportioning valve.

Includes:

• Front and Rear Brake Caliper Kit
• Brake Pads
• 14 x 1.25 In. Vented & Slotted Rotors
• Installation Hardware
• Bolt-On Installation
• Works w/ Factory ABS & Proportioning Valve

Calipers:

• Opposed 4-Piston Configuration
• 2 In. Pistons
• EPDM Synthetic Piston Boot
• T6 6061 Forged Aluminum Construction
• 1,000 Hour Salt Spray Tested
• E-Dipped
• Auto-Bleeding Check Valve
• Anodized Piston Bores

Rotors:

• 14 x 1.25 In. Vented Rotors
• Heat-Treated Cast Iron
• Mill-Balanced
• GEOMET Coating on Non-Friction Surfaces to Prevent Corrosion

Notes:

• TeraFlex recommends upgrading your master cylinder and brake booster
