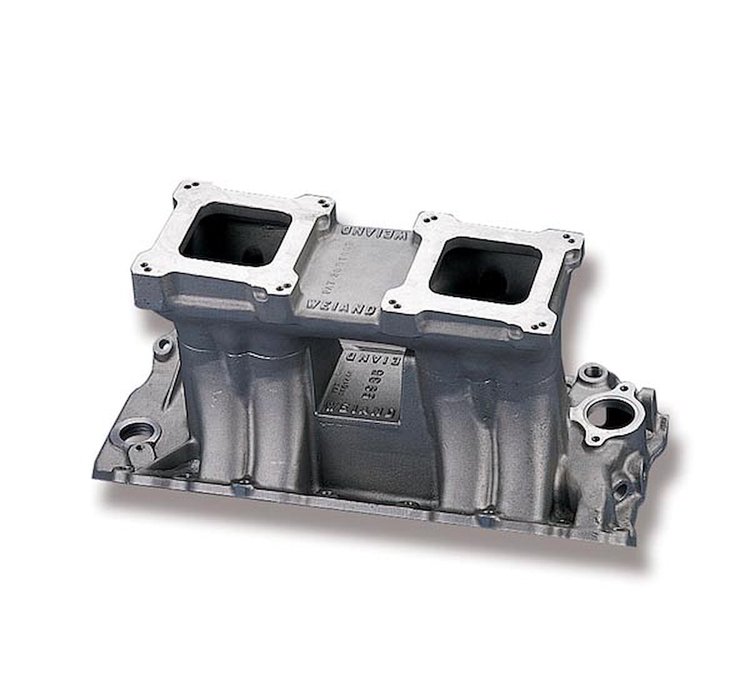

Hi-Ram Intake Manifold for Chevy Big Block 396ci-502ci [Rectangular Port Heads]
InfoVehicle Info Needed
WEIANDPART NUMBER: 925-1985WND

Hi-Ram Intake Manifold for Chevy Big Block 396ci-502ci [Rectangular Port Heads]

Color:

Natural
$69995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Chevy Big Block
Hi-Ram Aluminum Intake Manifold
  • Chevy Big Block 396ci to 502ci
  • 2500-7800 RPM Operating Range
  • 4150 Square Bore Carburetor Flange
  • Single Plane Design
  • Natural Cast Aluminum Finish

    This Weiand intake manifold is engineered to deliver strong, consistent airflow to the cylinders for Chevy Big Block 396ci-502ci applications, improving throttle response and power across the RPM range.

    Technical Specifications:

    • Chevy Big Block 396ci to 502ci
    • 2500-7800 RPM Operating Range
    • 4150 Square Bore Carburetor Flange
    • Single Plane Design
    • Natural Cast Aluminum Finish

      • Designed around Weiand's exclusive patented ''D''-shaped port runners and large plenum chamber, Hi-Ram provides the optimum fuel charge needed for maximum power in normally aspirated competition engines where high RPM use is necessary. RPM range is up to 9000, depending on individual application. Weiand manifolds accept standard flange Holley carbs and require use of Weiand linkage kit.

      Show More

      JEGS Easy Kits are designed by JEGS Professionals to assist your shopping experience. Kit includes Weiand Intake Manifold, Intake Gaskets, Intake Bolts, Carb Gasket, Carb Studs and RTV Silicone Sealer.

    Part TypeIntake Manifold
    Product LineWeiand Hi-Ram Tunnel Ram Manifold
    BrandWEIAND
    Package Height12.5
    Package Width13.2
    Package Length24.3
    Weight29.1 PG
    Part CategoryPerformance Parts
    ConstructionCast
    Gasket Or Seal IncludedNo
    ColorNatural
    Fuel System TypeCarb
    MaterialAluminum
    Deck Height9.8 in.
    Cylinder Head Port ShapeRectangle
    Engine Make/SizeChevy Big Block V8
    Egr PortNo
    Basic Operating Rpm Range2500-7800
    Cnc PortedNo
    Carburetor Flange4150 Square Bore
    Fuel Injectors IncludedNo
    Single Or Dual Plane TypeSingle
    Part FitmentSemi Universal
    Rear Maximum Height10.93 in.
    Front Maximum Height10.12 in.
    Manifold TypeHi-Ram
    Grade TypePerformance
    Plenum FinishCast
    Vendor Part Number1985WND
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
