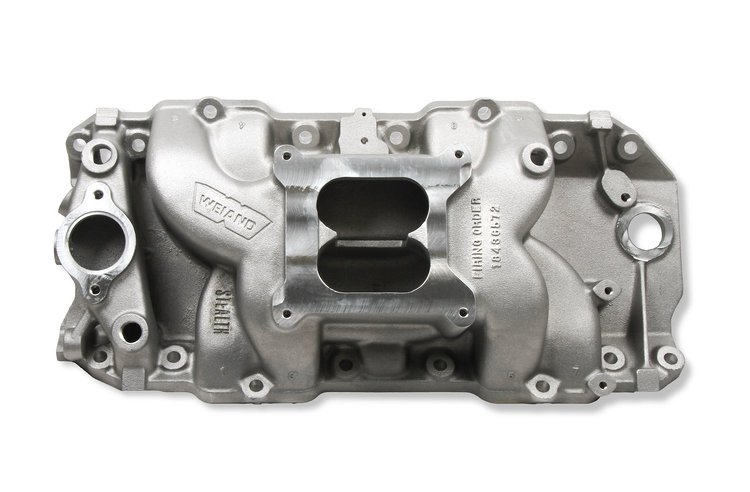

Vehicle Info NeededStealth Intake Manifold BB-Chevy 396-502ci - Rectangle Port
Ships Tomorrow
Lowest Price Guarantee- Stealth Intake Manifold
- BB-Chevy 396-502ci - Rectangle Port
- 4150 Carb Flange
- Idle-6800 RPM Range
8018 Features:
- Will clear HEI distributor
- High Rise/Dual Plane Design

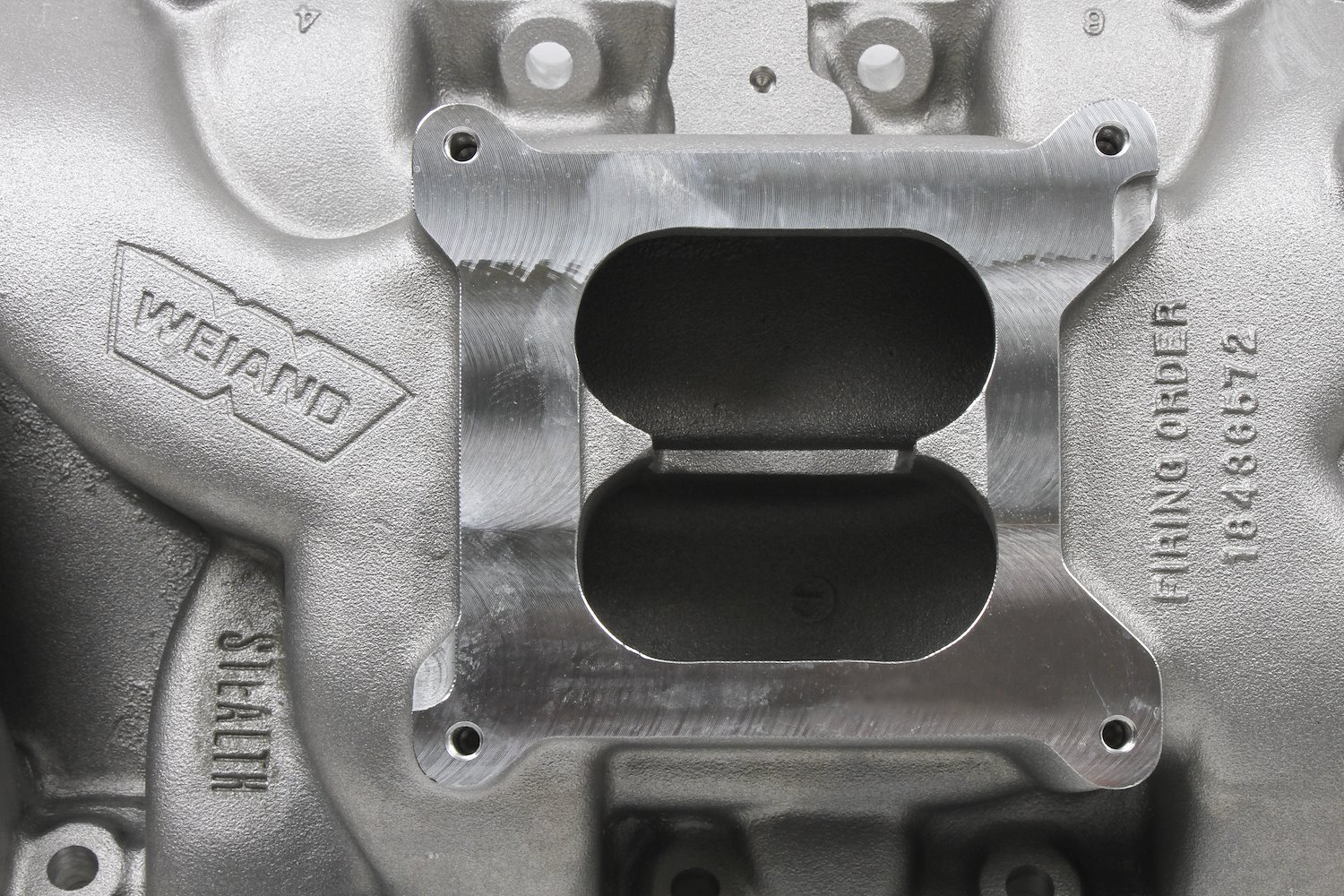

- 4150 Style Square Bore Mounting Flange
- Machined for Standard Deck Blocks
- Power band: Idle-6800 RPM
- Height: Front 4.75", Rear 5.75"
- Port Size: 2.30" height 1.59" width
- Recommended intake manifold gasket p/n 555-210100
- Recommended thermostat housing gasket p/n 375-2101
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Completely new design plenum and runners for optimized air/fuel distribution and power!
Weiand recognized that todays engine technology has really advanced in our performance world since the Stealth series intake manifolds were originally designed some years ago. With larger stroker motors, more efficient cylinder head designs and aggresive cam profiles has brought about a need for an intake manifold capable of supporting these power houses.
Show More
So Weiand wiped the work bench clean and started over.The newly redesigned Stealth dual plane intakes will nearly match a single plane manifold's peak horsepower number with a much fatter torque curve that is perfect for street and heavy duty/towing applications.
- High rise, dual plane, design builds maximum torque and horsepower for street/strip applications
- Square bore carburetor flange
- permanent mold casting process for lighter, smoother, better looking and more consistent castings
- Fully CNC machined for a perfect fit
In addition, some of these manifolds feature Weiand's Everbright coating. Virtually maintenance-free, this polished finish is the product of vacuum metalizing technology and protective clearcoating...looks good, lasts long.
JEGS Easy Kits are designed by JEGS Professionals to assist your shopping experience. Kit includes Weiand Intake Manifold, Intake Gaskets, Intake Bolts, Carb Gasket, Carb Studs and RTV Silicone Sealer.
