Made in USA

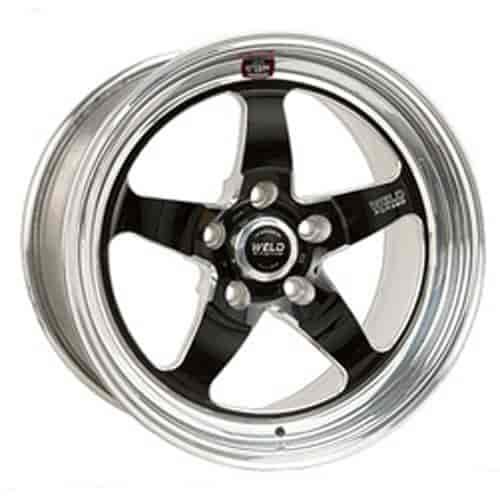

RT-S Series S71 Wheel Size: 18x9.5", Bolt Pattern: 5x4.5" [Black] -1 mm Offset
InfoVehicle Info Needed
WELD RACINGPART NUMBER: 927-71MB8095A52A

RT-S Series S71 Wheel Size: 18x9.5", Bolt Pattern: 5x4.5" [Black] -1 mm Offset

$99527$1145.00You Save$149.73
1 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

18" x 9.5"
RT-S Series S71 Wheel
  • Size 18x9.5"
  • Bolt Pattern 5x4.5"
  • -1 Offset
  • Back Spacing 5.2"
  • Black Center
  • Polished Shell
  • Bore Diameter 3.18"/80.77 mm
  • Center Cap Included

    JEGS How to Measure Wheel Fitment: Click Here

    Weld Racing 71MB8095A52A RT-S Series S71 Wheel Features:

    • Minimal Weight for Maximum Performance
    • Specifically Designed for Modern Muscle Cars
    • Custom Wheel Versatility for Precise Fit
    • Forged Centers and Rim Shells for Superior Strength
    • High Pad Center for the Largest Brake Packages
    • Matching Push Thru Center Cap Included
    • Valve Stem Included
    • Lug Nuts Sold Separately
  • Specialty Racing Wheels

    • 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag style lug nuts
    • 17", 18", 20" diameter wheels and wheels with a 4-Lug or 5x5" Bolt Patterns require conical lug nuts

    Weld Racing brings flexible racing technology to the street with a budget-friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing 5-spoke star look and continues the Weld Racing tradition by utilizing a forged billet center and cold forged rim shells. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.

    Show More

    Pad Heights:

    • The low pad wheels fit cars with drum brakes, early disc brakes and aftermarket drag racing brake systems.
    • The medium pad fits the high performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980's onward, along with many aftermarket brake systems.
    • The high pad is designed for modern super cars with fixed opposed piston calipers such as factory installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
      Features:
    • Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
    • Black Anodized Center
    • Wheel widths from 4" to 18" with a wide variety of back spacings
    • Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
    • Center cap and valve stem included
    • Made in Kansas City, USA

    Weld Racing RT_S Series Black anodized Finish Wheels are also available in Polished Finish

    Part TypeWheel
    Product LineWeld Racing RT-S Series S71 Black Wheels
    BrandWELD RACING
    Package Height10.5
    Package Width15.5
    Package Length16.5
    Weight15.76 PG
    Part CategoryPerformance Parts
    Valve Stems IncludedYes
    Wheel Size18 x 9.5 in.
    Hub CentricNo
    Lug Nut Seat TypeConical seat - 60 degree
    Load Rating (Lbs.)1,580
    PositionN/A
    Valve Stem MaterialRubber
    Quantity1
    Primary Wheel ColorBlack
    Wheel FinishPolished
    Wheel Construction3-piece
    Bolt Pattern5 x 4.5 in.
    Back Spacing5.2 in (132.08 mm)
    Offset-0.039 in.
    Valve Stem FinishChrome sleeve
    Backspacing5.2 In.
    Valve Stem IncludedYes
    Center Bore Diameter3.18 In.
    Center Cap IncludedYes
    Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
    Load Rating1580 lbs.
    Lug Nut Seat StyleConical seat - 60 degree
    Wheel Diameter18 in.
    Wheel Offset-1 mm (-.0394 in)
    Wheel TypeCar Street, Strip Wheels
    Part FitmentUniversal
    Wheel Width9.5 In.
    Vendor Part Number71MB8095A52A
    Package Qty1
    Package TypeEA
