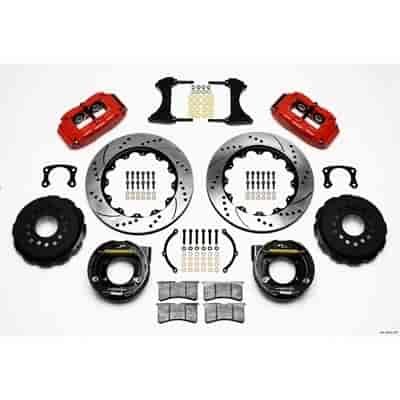

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Vehicle Info Needed

WILWOODPART NUMBER: 950-140-10012-DR

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Name: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
Brand: WILWOOD
SKU: 950-140-10012-DR
Price: 2330.34 USD
Availability: InStock

^$2,330³⁴

Ships on 09/14/2026

Lowest Price Guarantee

Ford

With Wilwood Parking Brake

Big Ford New Style Flange
2.50" Offset
14" Rotor Dia.
18" Min. Wheel Dia.
5 x 4.5/4.75/5.0" Bolt Circle
0.52" Wheel Stud Dia.
SRP Rotors
Red Calipers

Part TypeBrake Conversion Kit

BrandWILWOOD

Package Height5.6

Package Width19.4

Package Length19.6

Weight43.65 PG

Part CategoryPerformance Parts

PositionRear

Rear Rotor StyleCross-drilled/Slotted surface

Brake Booster IncludedNo

QuantitySold as a kit

Rear Rotor Thickness1.1 in (27.9 mm)

Minimum Recommended Wheel Diameter18 in (457.2 mm)

Offset2.5 in (63.5 mm)

Parking Brake ProvisionYes

Rear Rotor Diameter14.00 in./355.6mm

Front Spindles IncludedNo

Brake Lines IncludedNo

Master Cylinder IncludedNo

Part FitmentSemi Universal

Parking Brake StyleInternal drum

Front Rotor IncludedNo

Rear Rotor ConstructionVented

Rear Rotor IncludedYes

Vendor Part Number140-10012-DR

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file

Some parts are not legal for use in California or other states with similar laws / regulations
