Vehicle Info NeededWILWOODPART NUMBER: 950-140-10012

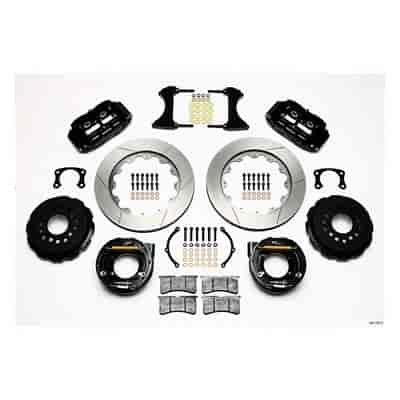

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
$2,33034
Ships on 09/14/2026
Lowest Price GuaranteeFordWith Wilwood Parking Brake
- Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
- Big Ford New Style Flange
- 2.50" Offset
- 14" Rotor Dia.
- 18" Min. Wheel Dia.
- 5 x 4.5/4.75/5.0" Bolt Circle
- 0.52" Wheel Stud Dia.
- GT 72 Rotors
- Black Calipers
Superior Rear Braking for Cars, Trucks and SUV's
Wilwood Forged Narrow Superlite Big Brake Kits provide the ultimate Big Brake solution for popular classic muscle cars, trucks and SUV rear axles. Wilwood Forged Narrow Superlite Big Brake Kits include Forged Narrow Superlite Radial (FNSLR) mount calipers, 13 in. or 14 in. two-piece rotors, and high-performance BP-10 compound pads that provide optimized and balanced braking to compliment front big brake upgrades. These kits include a neatly hidden internal shoe system that provides a clean installation with superior static holding power for parking.
Part TypeBrake Conversion Kit
Product LineWilwood Forged Narrow Superlite Rear Big Brake Kit
BrandWILWOOD
Package Width78.0
Weight78.0 PG
Part CategoryPerformance Parts
PositionRear
Rear Rotor StyleSlotted surface
Brake Booster IncludedNo
QuantitySold as a kit
Rear Rotor Thickness1.1 in (27.9 mm)
Minimum Recommended Wheel Diameter18 in (457.2 mm)
Offset2.5 in (63.5 mm)
Parking Brake ProvisionYes
Rear Rotor Diameter14.00 in./355.6mm
Front Spindles IncludedNo
Brake Lines IncludedNo
Master Cylinder IncludedNo
Part FitmentSemi Universal
Parking Brake StyleInternal drum
Front Rotor IncludedNo
Rear Rotor ConstructionVented
Rear Rotor IncludedYes
Vendor Part Number140-10012
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
