Vehicle Info NeededWILWOODPART NUMBER: 950-140-10093

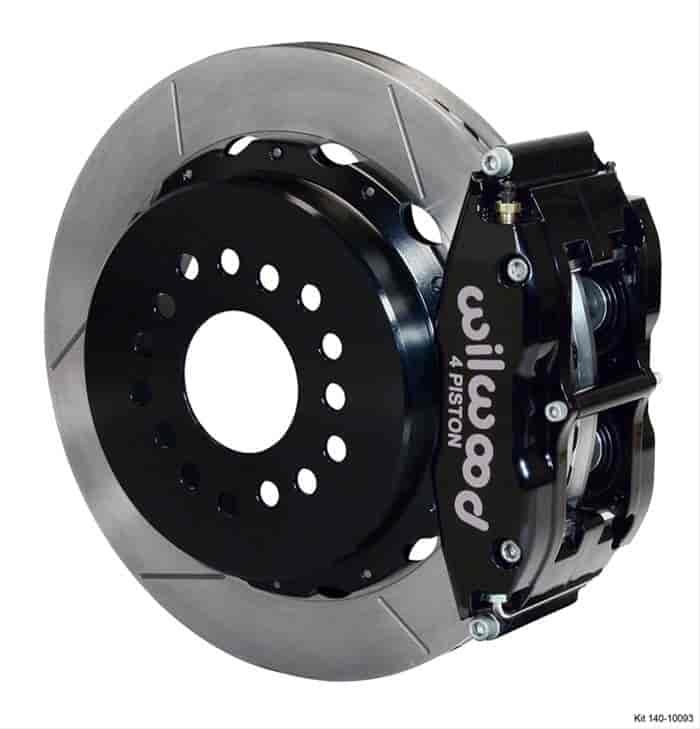

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
$2,14196
Ships on 09/14/2026
Lowest Price GuaranteeGMWith Wilwood Parking Brake
- Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
- Rear End: 1963-1987 Chevy C10
- 4 Piston Caliper (Anodized Black)
- 2.42'' Offset
- 12.88'' Slotted Vented Rotor
- 17'' Min. Wheel Dia.
Application Revision: - 1966-74, 79-83 GMC C15/C1500 Pickup
- 1980, 84-86 GMC C1500 Pickup
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Width67.0
Weight67.0 PG
Part CategoryPerformance Parts
Positionat Rear Axle
Rear Rotor StyleSlotted surface
Brake Booster IncludedNo
QuantitySold as a kit
Rear Rotor Thickness1.1 in (27.9 mm)
Minimum Recommended Wheel Diameter17 in (431.8 mm)
Offset2.42 in (61.5 mm)
Rear Brake TypeDrum
Parking Brake ProvisionYes
Rear Rotor Diameter12.88 in./327.1mm
Front Spindles IncludedNo
Brake Lines IncludedNo
Master Cylinder IncludedNo
Part FitmentSemi Universal
Parking Brake StyleInternal drum
Front Rotor IncludedNo
Rear Rotor ConstructionVented
Rear Rotor IncludedYes
Vendor Part Number140-10093
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
