Vehicle Info NeededWILWOODPART NUMBER: 950-140-10908-D

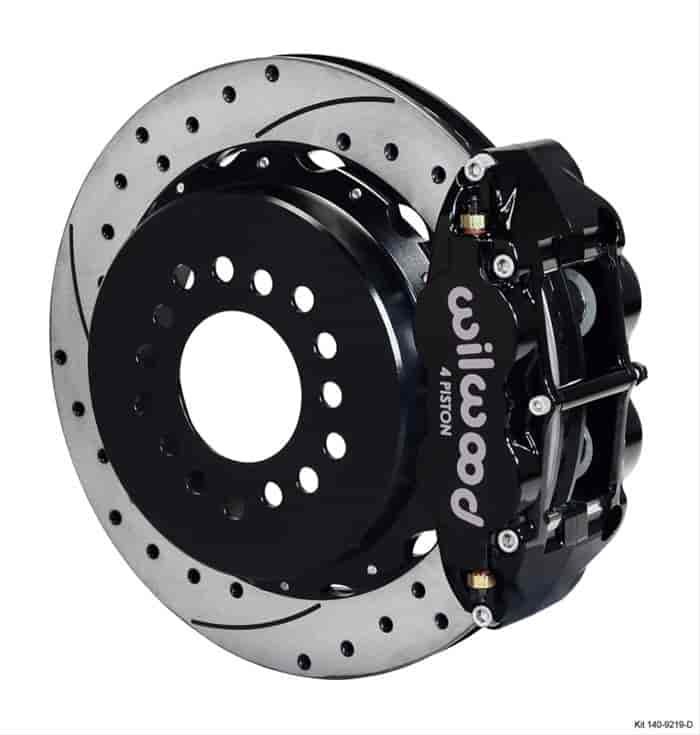

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
$2,14196
Ships on 09/14/2026
Lowest Price GuaranteeGMWith Wilwood Parking Brake
- Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
- Rear End: Chevy 10/12-Bolt Flange
- 4 Piston Caliper (Anodized Black)
- 2.81'' Offset
- 12.88'' Drilled/Slotted Vented Rotor
- 17'' Min. Wheel Dia.
Tech Notes: - For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
- Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
Superior Rear Braking for Cars, Trucks and SUV's
Wilwood Forged Narrow Superlite Big Brake Kits provide the ultimate Big Brake solution for popular classic muscle cars, trucks and SUV rear axles. Wilwood Forged Narrow Superlite Big Brake Kits include Forged Narrow Superlite Radial (FNSLR) mount calipers, 13 in. or 14 in. two-piece rotors, and high-performance BP-10 compound pads that provide optimized and balanced braking to compliment front big brake upgrades. These kits include a neatly hidden internal shoe system that provides a clean installation with superior static holding power for parking.
Part TypeBrake Conversion Kit
Product LineWilwood Forged Narrow Superlite Rear Big Brake Kit
BrandWILWOOD
Package Width67.0
Weight67.0 PG
Part CategoryPerformance Parts
PositionRear
Rear Rotor StyleCross-drilled/Slotted surface
Brake Booster IncludedNo
QuantitySold as a kit
Rear Rotor Thickness1.1 in (27.9 mm)
Minimum Recommended Wheel Diameter17 in (431.8 mm)
Offset2.81 in (71.4 mm)
Parking Brake ProvisionYes
Rear Rotor Diameter12.88 in./327.1mm
Front Spindles IncludedNo
Brake Lines IncludedNo
Master Cylinder IncludedNo
Part FitmentSemi Universal
Parking Brake StyleInternal drum
Front Rotor IncludedNo
Rear Rotor ConstructionVented
Rear Rotor IncludedYes
Vendor Part Number140-10908-D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
