Made in USA
GP320 Midget Front Brake Kit
Product Discontinued
WILWOODPART NUMBER: 950-140-11808

GP320 Midget Front Brake Kit

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Brake Kits

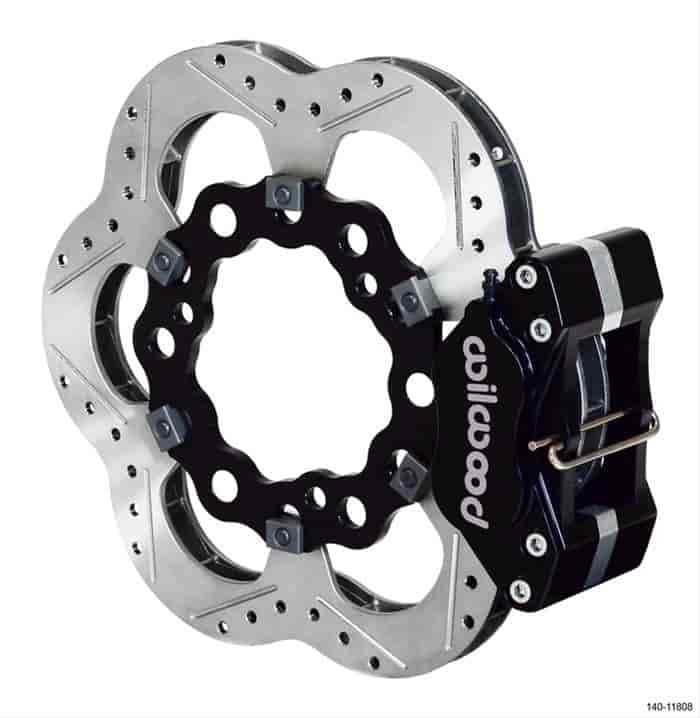

    GP320 Midget Front Brake Kit
  • Lug Mount
  • 4 Piston Caliper (Black Anodized)
  • 10.5'' Drilled/Slotted Scalloped Vented Rotor
  • Rotor Width: 0.78''

The GP 320 billet four piston caliper is a compact, high efficiency performer. Weighing just 1.70 pounds, it was purpose built as an upgrade with increased pad size over two piston calipers on lightweight open wheeled racecars. The GP 320 is also well suited to other performance and racing applications including, but not limited to karts, motorcycles, mini-sprints, and formula sports racers. The GP 320 bridge configuration will accommodate rotors between .75" and .81" thick, with overall diameters between 9.00" and 11.50".

Show More

Features:

  • 4-Piston Design
  • Piston Diameter: 1.25''
  • Piston Area: 2.46 Square Inches
  • Pad Volume: 1.03 Cubic Inches
  • 3.50" Lug Mount
  • Maximum Rotor Diameter: 11.50''
Part TypeBrake Conversion Kit
Product LineWilwood GP320 Billet 4-Piston Calipers & Kits
BrandWILWOOD
Part CategoryPerformance Parts
Front Rotor ConstructionVented
PositionFront
Front Rotor StyleCross-drilled surface
Brake Booster IncludedNo
QuantitySold as a kit
Parking Brake ProvisionNo
Front Spindles IncludedNo
Front Rotor Diameter10.50 in./266.7mm
Brake Lines IncludedNo
Master Cylinder IncludedNo
Front Rotor IncludedYes
Front Rotor Thickness0.783 in (19.888 mm)
Rear Rotor IncludedNo
Vendor Part Number140-11808
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
