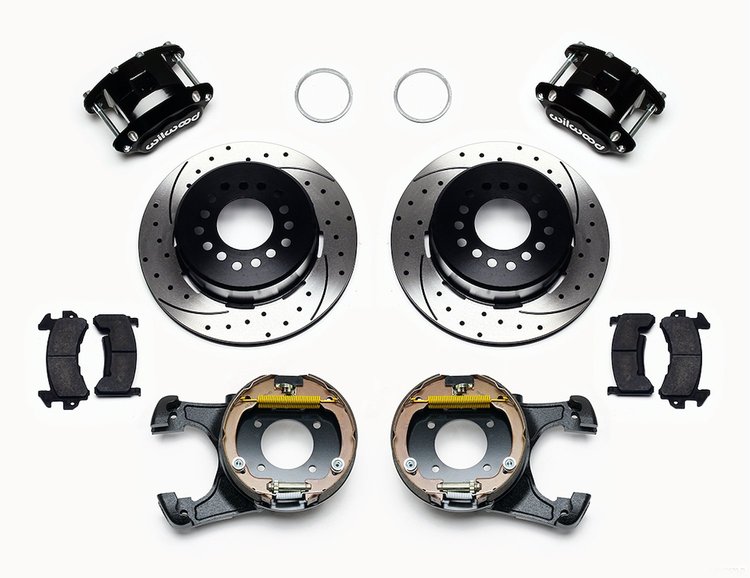

140-15641-D D154 Rear Parking Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-15641-D

140-15641-D D154 Rear Parking Brake Kit

$1,12494
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

    D154 Rear Parking Brake Kit
  • Disc/Drum
  • D154
  • 12 Bolt Chevy
  • 2.75/ 2.81 Offset
  • 1-Piece Rotor
  • SRP Drilled And Slotted Rotors
  • Front Mt

    Wilwood 140-15641-D Features:

    D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19 in. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height13.88
Package Width13.88
Package Length16.62
Weight59.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity2
Caliper TypeFloating
Rotor Outside Diameter12.19 in.
Rotor Thickness0.81 in.
Wheel Stud Size0.52 in.
Spindle IncludedNo
Component TypeRear Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishBlack Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter5 x 4.5 in., 5 x 4.75 in., 5 x 5 in.
Flange Type12 Bolt
Brake TypeDisc, Parking
Minimum Wheel Diameter16 in.
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypeSRP Drilled & Slotted
Part FitmentSemi Universal
Flange Offset2.75 in., 2.81 in.
Rotor MaterialIron
Vendor Part Number140-15641-D
Package Qty1
Package TypeEA
